D38999 Pin and Socket Contacts

Picture for category D38999 Pin and Socket Contacts

SV Microwave has released a line of D38999 pin and socket contacts that are aligned to the latest specification set forth by SOSA™. These coaxial contacts fit both standard and series III housing and are offered in BMB size 8 and SMPM size 12. These contacts are ideal in an embedded system that transitions from the chassis to an out-of-the-box application.

Features / Benefits:

  • SOSA™ Aligned high frequency RF contacts for D38999
  • Industry-trusted, standardized interfaces per MIL-STD-348
  • Size 8 contacts fit larger cable, when loss matters most
  • Size 12 contacts rated to higher frequency, when frequency and density matter
  • Size 8 BMB - 22 GHz, Size 12 SMPM - 65 GHz

Applications:

  • Embedded Systems
  • Military and Aerospace
  • Severe/Harsh Environments

The specifications below are typical for the connector series, but may not apply to this particular part. Please see the datasheet for full specifications.

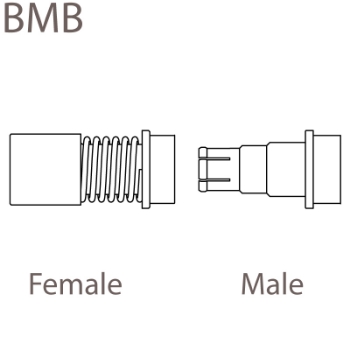

BMB

Impedance (Ω)50
Frequency GHz22 GHz
Shielding Effectiveness-90 dB - F(GHz)
Dielectric withstanding Voltage1000 VRMS
Mating Cycles500
Insertion Force2.0 lbs
Withdrawal Force6.0 oz
Temperature Rating-65°C to +165°C
Corrosion (salt spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D
ShockMIL-STD-202, Method 213, Condition I
Thermal ShockMIL-STD-202, Method 107, Condition B
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

SMPM

Impedance (Ω)50
Frequency GHz65 GHz
Shielding Effectiveness≥ -80 dB DC - 3 GHz
 ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage325 VRMS
Mating Cycles - SB500
Mating Cycles - FD100
Insertion Force - SB2.5 lbs
Insertion Force - FD4.5 lbs
Withdrawal Force - SB1.5 lbs
Withdrawal Force - FD6.5 lbs
Axial Misalignment.010” Max
Radial Misalignment3° Max
Temperature Rating-65°C to +165°C
Corrosion (salt spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D
ShockMIL-STD-202, Method 213, Condition I
Thermal ShockMIL-STD-202, Method 107, Condition B
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

Application Note

SOSA™ Aligned Products Application Note

Product Video

Filters
Part #   4941-60001

BMB Pin D38999 Contact (Size 8) for Ø.087” LL Cable

Available Inventory: 125
4941-60001
BMB Contacts 4941-60001
Datasheet
Part #   4941-60002

BMB Pin D38999 Contact (Size 8) for Ø.141” Cable

Available Inventory: 130
4941-60002
BMB Contacts 4941-60002
Datasheet
Part #   4951-60005

BMB Socket D38999 Contact (Size 8) for Ø.087” LL Cable

Available Inventory: 148
4951-60005
BMB Connectors 4951-60005
Datasheet
Part #   4951-60006

BMB Socket D38999 Contact (Size 8) for Ø.141” Cable

Available Inventory: 150
4951-60006
BMB Connectors 4951-60006
Datasheet
Part #   9321-40004

SMPM Pin (Size 12) D38999 Contact for .047 Cable

Available Inventory: 131
9321-40004
SMPM Connectors 9321-40004
Datasheet
Part #   SF3211-60153

SMPM Socket (Size 12) D38999 Contact for .047 Cable

Available Inventory: 80
SF3211-60153
SMPM Connectors SF3211-60153
Datasheet
