BZ Female to SMA Male Adapter
P/N: SF1122-6106

This part number is currently unavailable. Please contact us for more information.
Products specifications
Attribute name Attribute value
RF Series BZ
Orientation (Body) Straight
Gender Jack (Female)
Coupling Push-on
Finish Passivated
RF Series 2 SMA
Orientation 2 (Body) Straight
Gender 2 Plug (Male)
Electrical
Frequency 3 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mechanical
Insertion Force 2.0 lbs
Mating Cycles 500
Withdrawal Force 1.25 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:02:56 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BZ
Orientation (Body) Straight
Gender Jack (Female)
Coupling Push-on
Finish Passivated
RF Series 2 SMA
Orientation 2 (Body) Straight
Gender 2 Plug (Male)
Electrical
Frequency 3 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mechanical
Insertion Force 2.0 lbs
Mating Cycles 500
Withdrawal Force 1.25 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

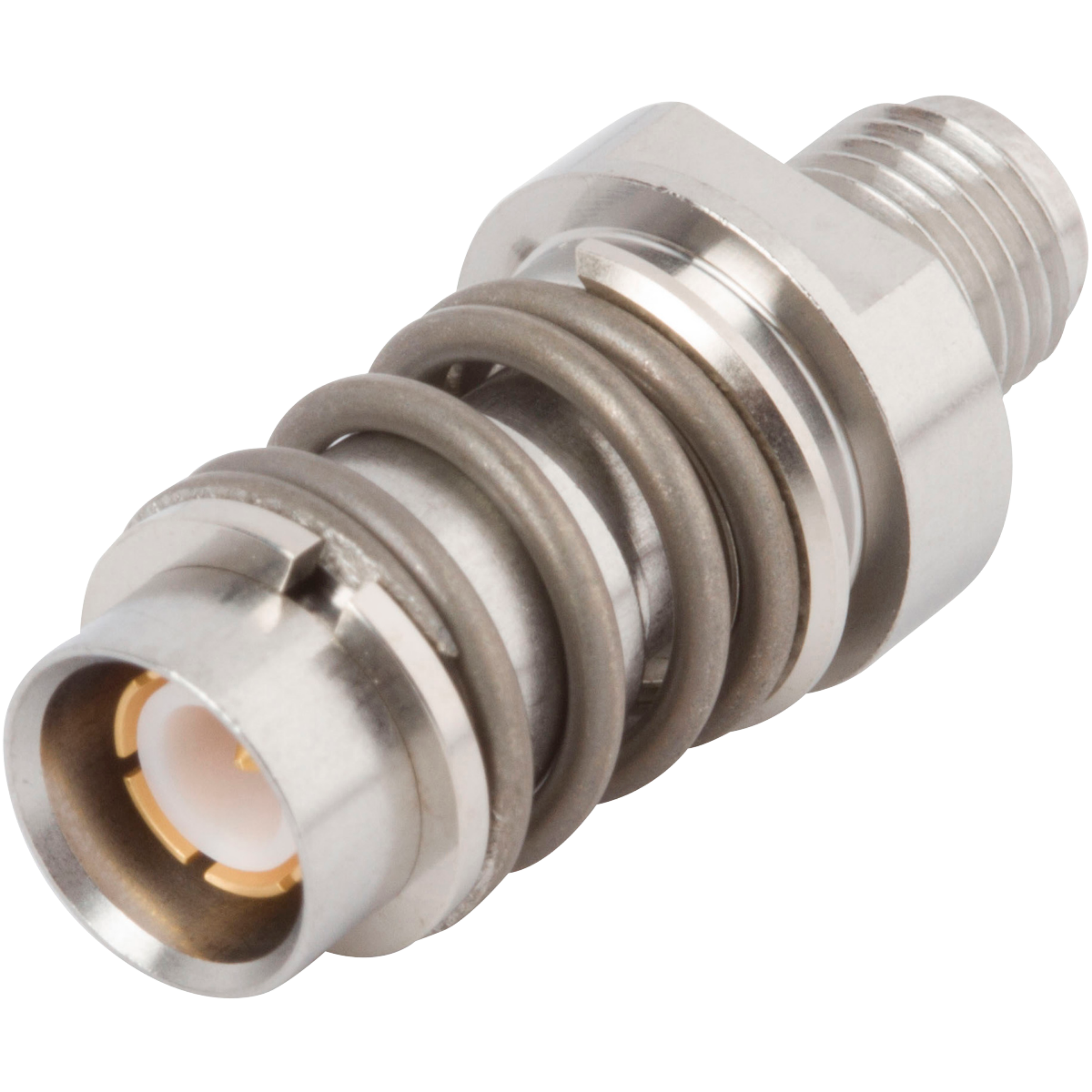

Part #   SF1122-6101

BZ Male to SMA Female Adapter, Spring Loaded

Available Inventory: 19
SF1122-6101
BZ Adapters SF1122-6101
Datasheet

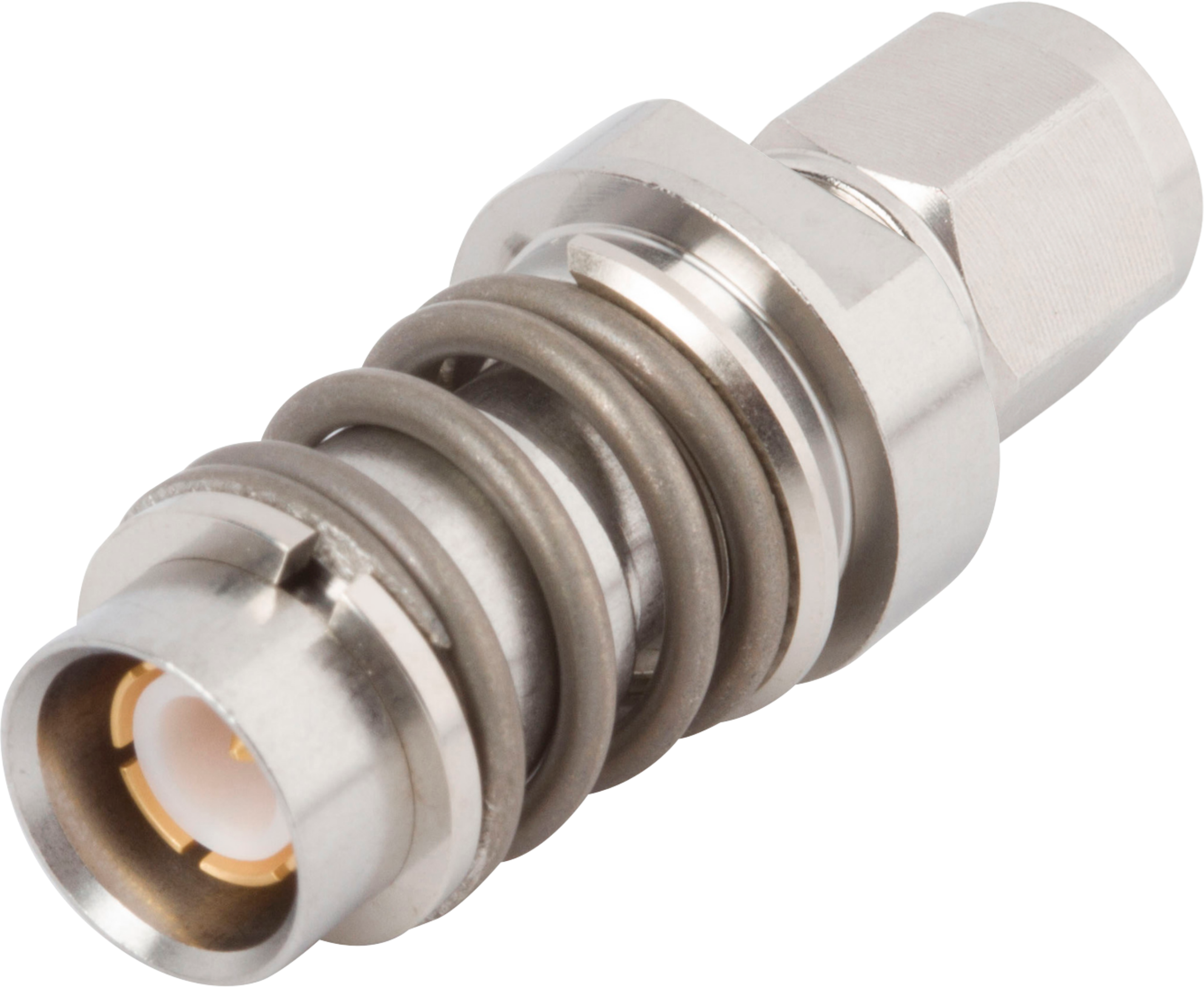

Part #   SF1122-6102

BZ Male to SMA Male Adapter, Spring Loaded

Available Inventory: 0
SF1122-6102
BZ Adapters SF1122-6102
Datasheet

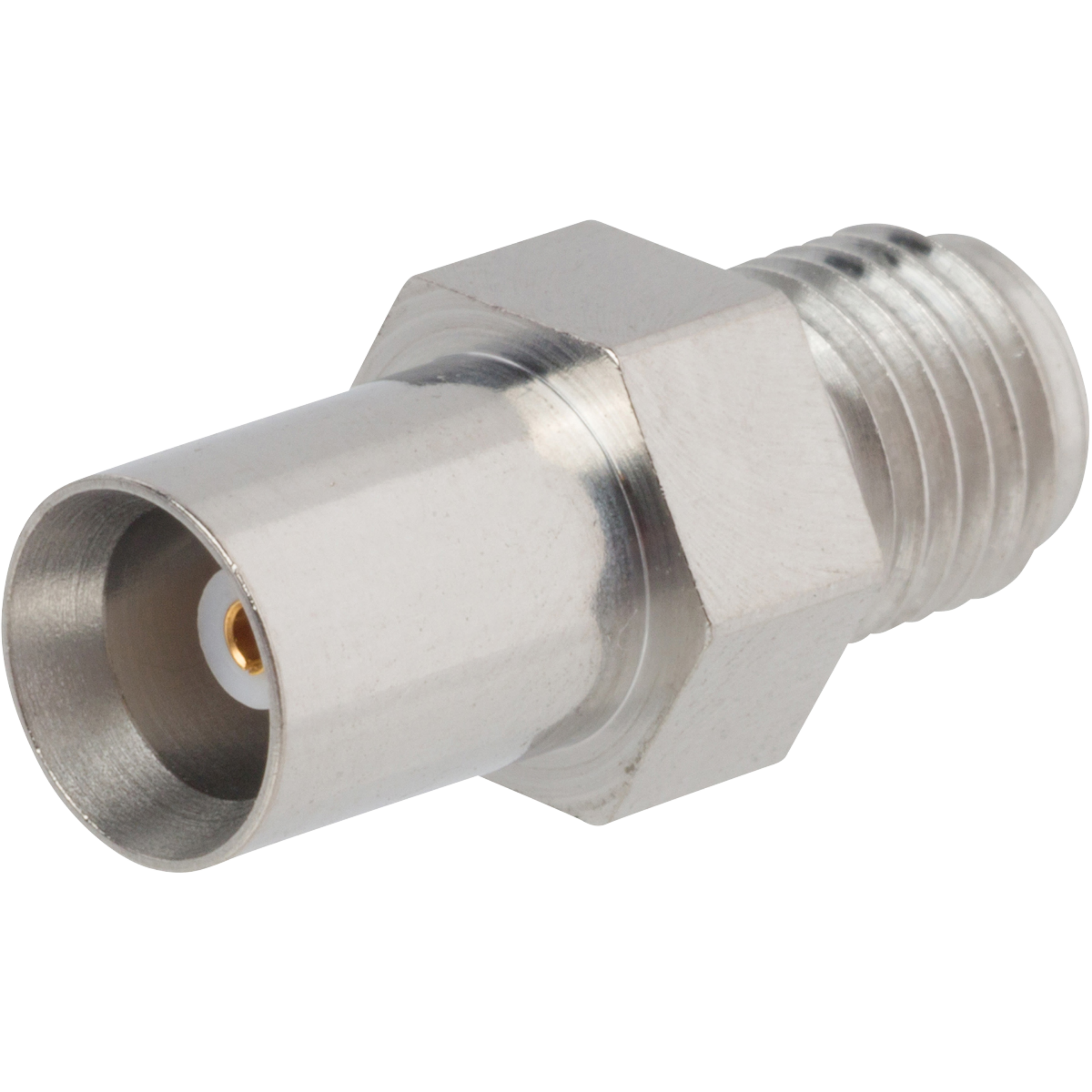

Part #   SF1122-6108
