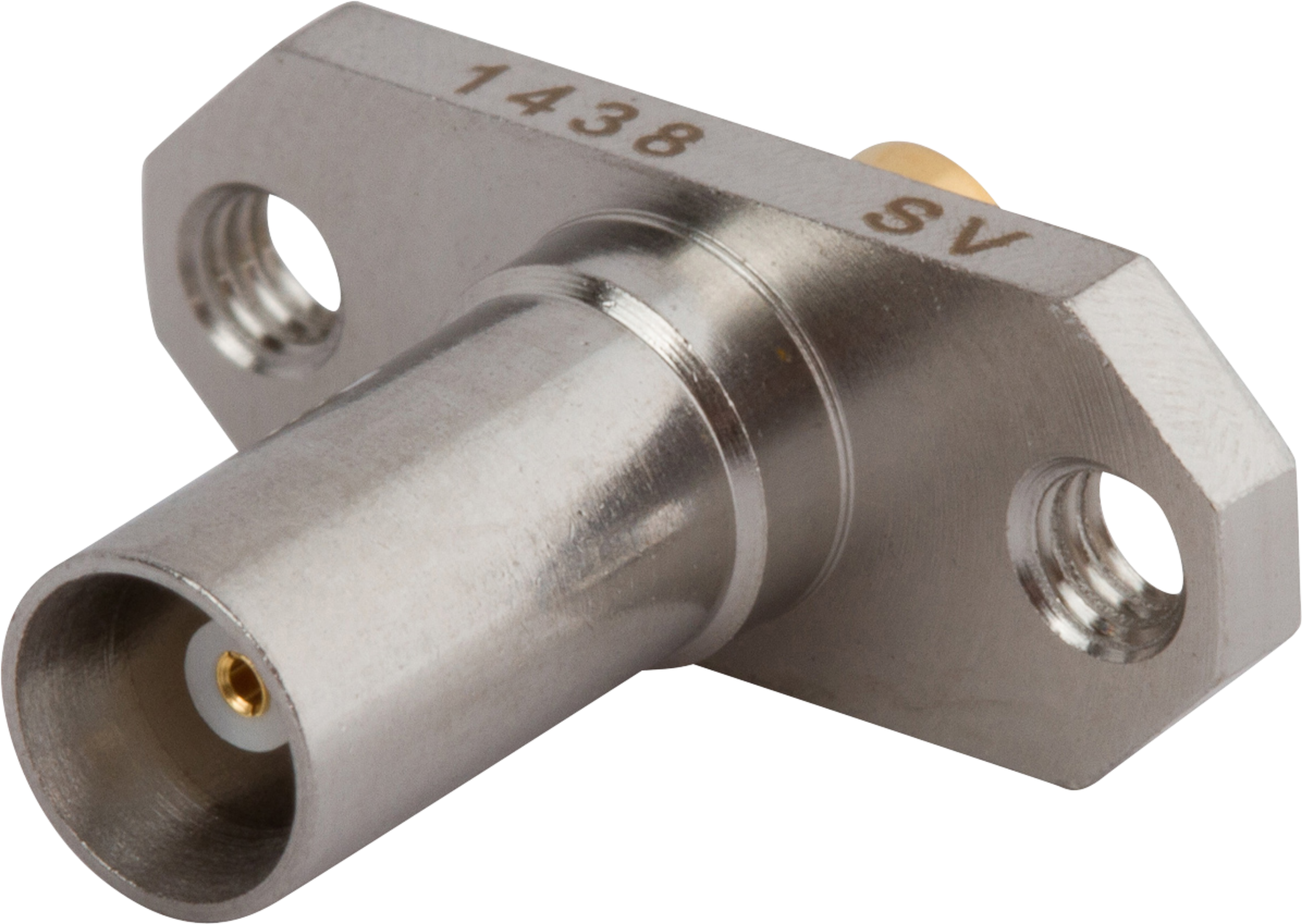

BZ Female Flange Mount Connector, 2 Hole, for .141 Cable
P/N: SF8835-6000

This part number is currently unavailable. Please contact us for more information.
Products specifications
Attribute name Attribute value
RF Series BZ
Gender Jack (Female)
Orientation (Body) Straight
Mounting Type Panel
Body Style 2 Hole
Finish Passivated
Coupling Push-on
Cable Type 0.140 Flexible Coax
Electrical
Frequency 3 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mechanical
Mating Cycles 500
Insertion Force 2.0 lbs
Withdrawal Force 1.25 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:21:11 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BZ
Gender Jack (Female)
Orientation (Body) Straight
Mounting Type Panel
Body Style 2 Hole
Finish Passivated
Coupling Push-on
Cable Type 0.140 Flexible Coax
Electrical
Frequency 3 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mechanical
Mating Cycles 500
Insertion Force 2.0 lbs
Withdrawal Force 1.25 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF3321-60003

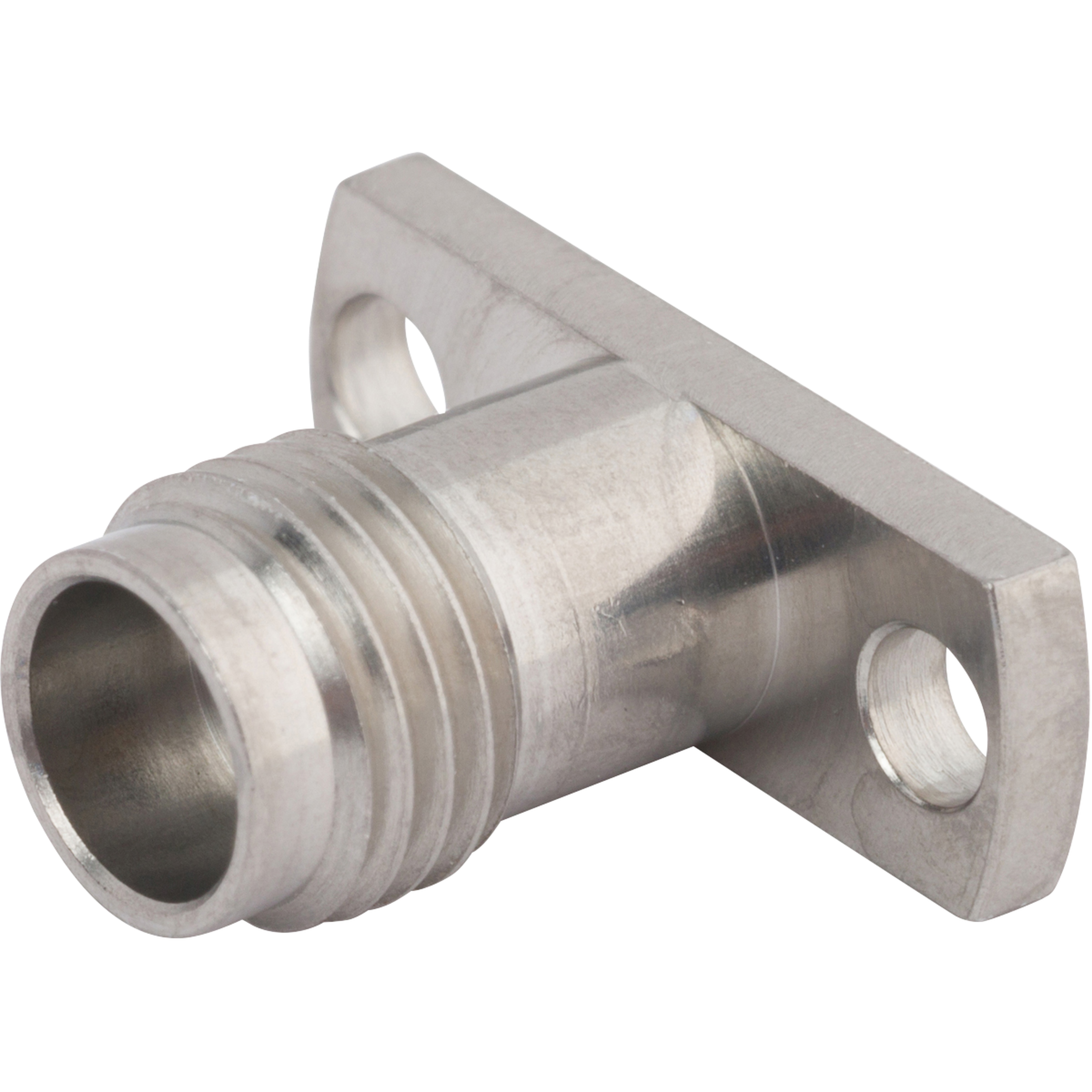

1.85mm Female Flange Mount Connector, 2 Hole (Accepts .009 Pin)

Available Inventory: 71
SF3321-60003
1.85mm Connectors SF3321-60003
Datasheet
Part #   SF8820-6001

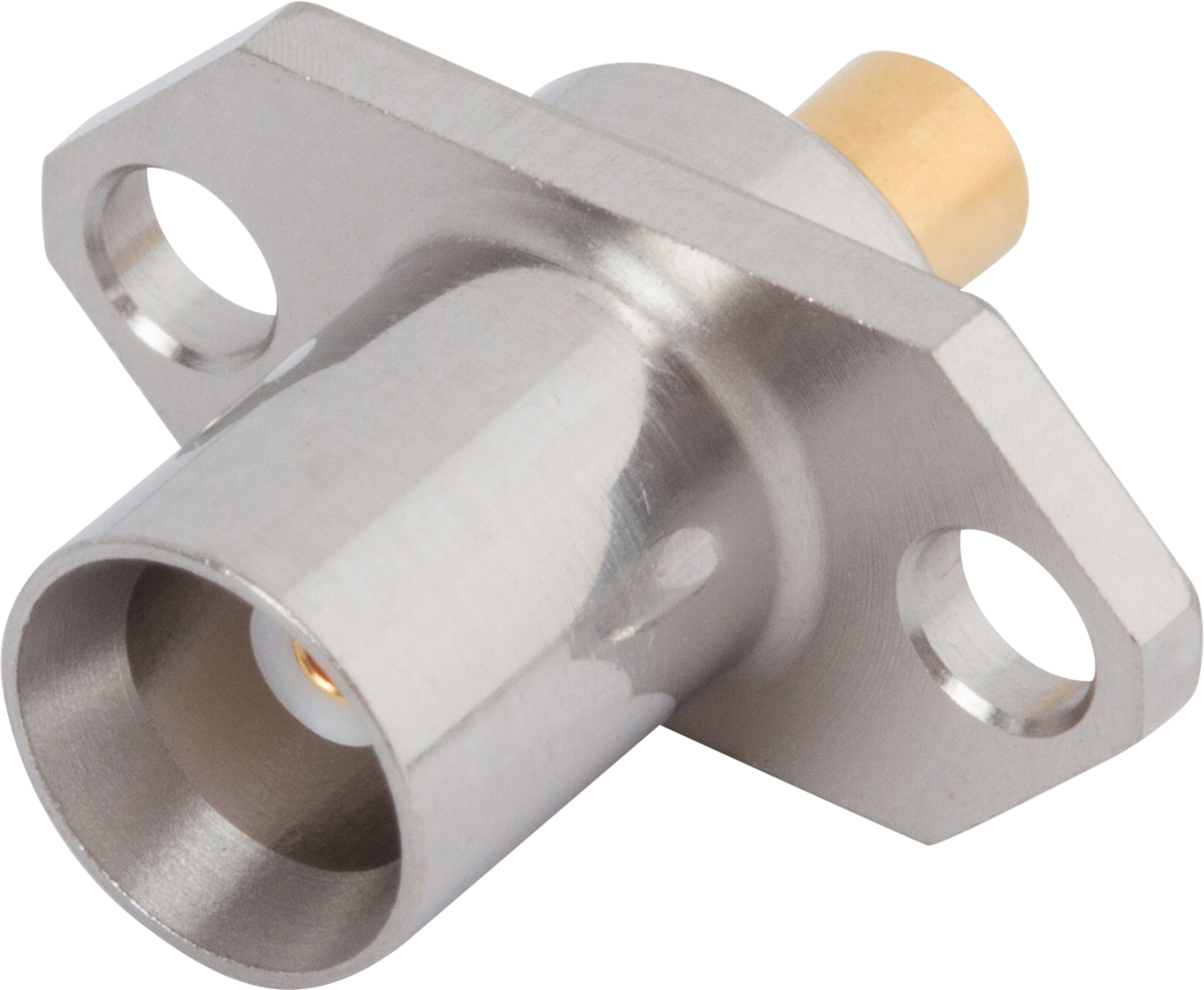

BZ Female Flange Mount Connector, 2 Hole, for .085 Cable
