Bulkhead to VITA Inside-The-Box Cable Assemblies

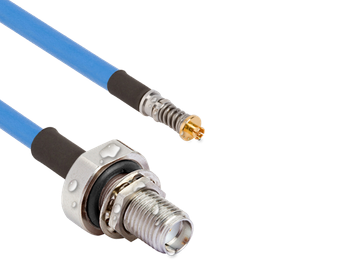

SV Microwave's new IP67 Bulkhead-to-VITA 67.3 cable assemblies provide a robust, inside-the-box solution for routing RF signals in embedded systems applications. These 12-inch assemblies are provide a secure, sealed transition from a box’s exterior to its internal backplane.

One end features a threaded, gasket-sealed SMA bulkhead connector, rated to IP67 for protection against dust and water ingress. The other end is terminated with a standard VITA 67.3 backplane contact (NanoRF, SMPM, or SMPS), allowing for direct connection to plug-in cards and enabling modular system designs.

Available with either flexible .047" or a less lossy .085", these assemblies ensure high-performance signal integrity for demanding applications.

Features / Benefits & Applications
Technical Specs

Features & Benefits

IP67-rated seal at the bulkhead for protection in harsh environments.
Supports a signal path from inside to outside the box.
Available in all three VITA 67.3 series: NanoRF, SMPM, and SMPS.
Available with flexible .047” or .085” cable types.
Standard 12” length for convenient routing within the box.
DC to 18 GHz.

Applications

Military & Aerospace Embedded Systems
Naval & Ground-Based Radar Systems
Electronic Warfare (EW) and SIGINT
Any application requiring a rugged, sealed I/O to a VITA-based system

The specifications below are typical for the connector series, but may not apply to this particular part. Please see the datasheet for full specifications.

VITA SMPM

Impedance (Ω)	50
Frequency GHz	40 GHz
Shielding Effectiveness	≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage	325 VRMS
Mating Cycles	500
Insertion Force	2.5 lbs (per contact)
Withdrawal Force	1.5 lbs
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

VITA SMPS

Impedance (Ω)	50
Frequency GHz	65 GHz
Shielding Effectiveness	≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage	250 VRMS
Mating Cycles	500
Insertion Force	1.2 lbs (per contact)
Withdrawal Force	1.0 lbs
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

VITA NANORF

Impedance (Ω)	50
Frequency GHz	67 GHz
Shielding Effectiveness	≥ -140 dB, 3 MHz to 30 MHz ≥ -120 dB, 30 MHz to 3.0 GHz ≥ -100 dB, 3.0 GHz to 30 GHz ≥ -90 dB, 30 to 67.0 GHz
Dielectric withstanding Voltage	250 VRMS
Mating Cycles	500
Insertion Force	2.5 lbs (per contact)
Withdrawal Force	0.315 lbs
Temperature Rating	-55°C to +125°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

SMA

Impedance (Ω)	50
Frequency GHz	18 GHz (select models to 26.5 GHz)
Shielding Effectiveness	≥ -90 dB
Dielectric withstanding Voltage	1000 VRMS
Mating Cycles	500
Mating Torque	7 - 10 in - lbs
Inter-mate ability	2.92mm
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
