BMZ Female to SMA Female Adapter, 2 Hole
P/N: SF1189-6001

In stock at Qty Order
Arrow Electronics Inc 18
Products specifications
Attribute name Attribute value
Gender Jack (Female)
RF Series BMZ
Orientation (Body) Straight
Mounting Type Panel
Coupling Push-on
Body Style 2 Hole
Finish Passivated
RF Series 2 SMA
Orientation 2 (Body) Straight
Gender 2 Jack (Female)
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Insertion Force 0.75 lbs
Withdrawal Force 0.13 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 12/4/2022 1:02:06 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Gender Jack (Female)
RF Series BMZ
Orientation (Body) Straight
Mounting Type Panel
Coupling Push-on
Body Style 2 Hole
Finish Passivated
RF Series 2 SMA
Orientation 2 (Body) Straight
Gender 2 Jack (Female)
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Insertion Force 0.75 lbs
Withdrawal Force 0.13 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1189-6103

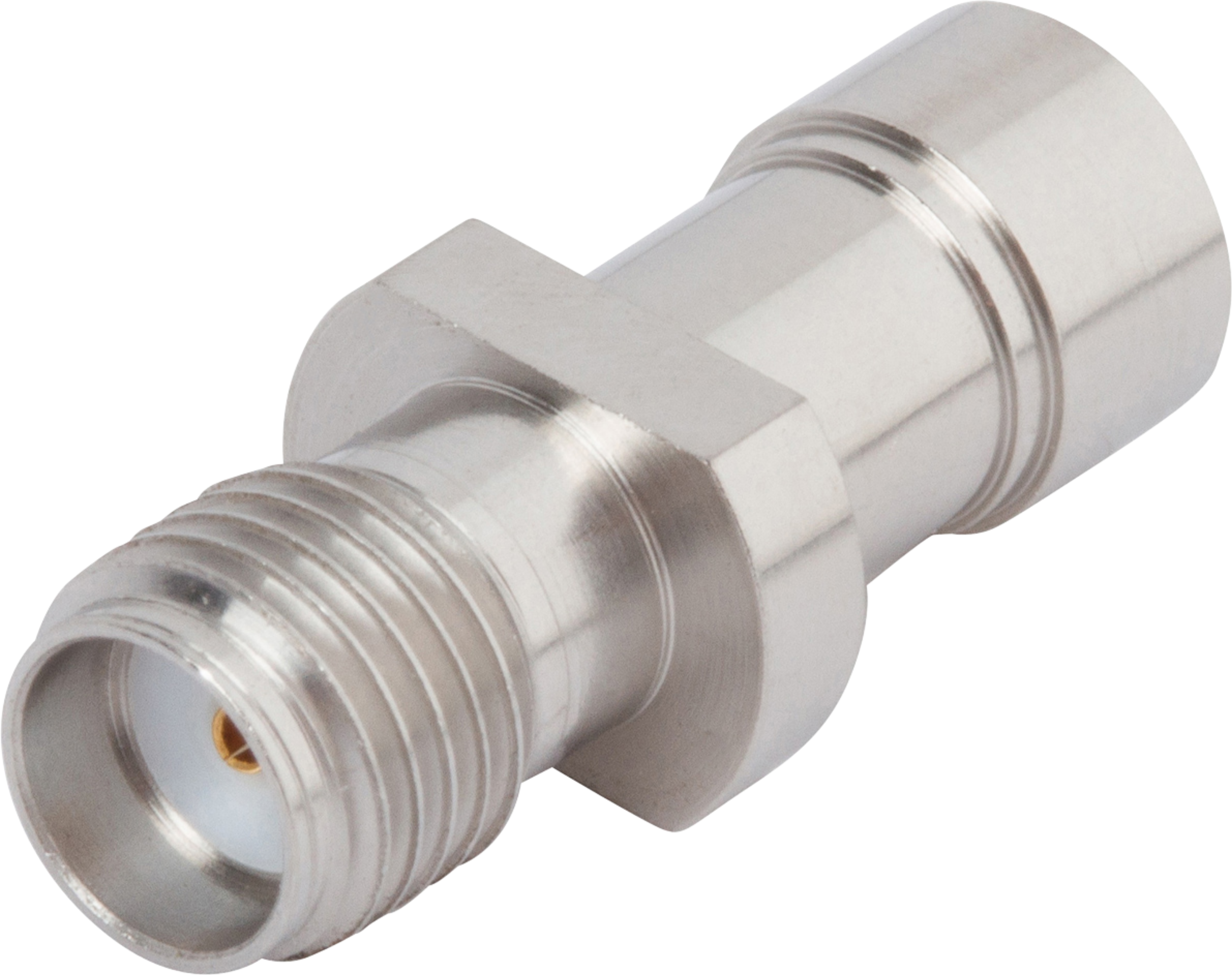

BMZ Male to SMA Female Adapter

Available Inventory: 88
SF1189-6103
BMZ Adapters SF1189-6103
Datasheet
Part #   SF1189-6009

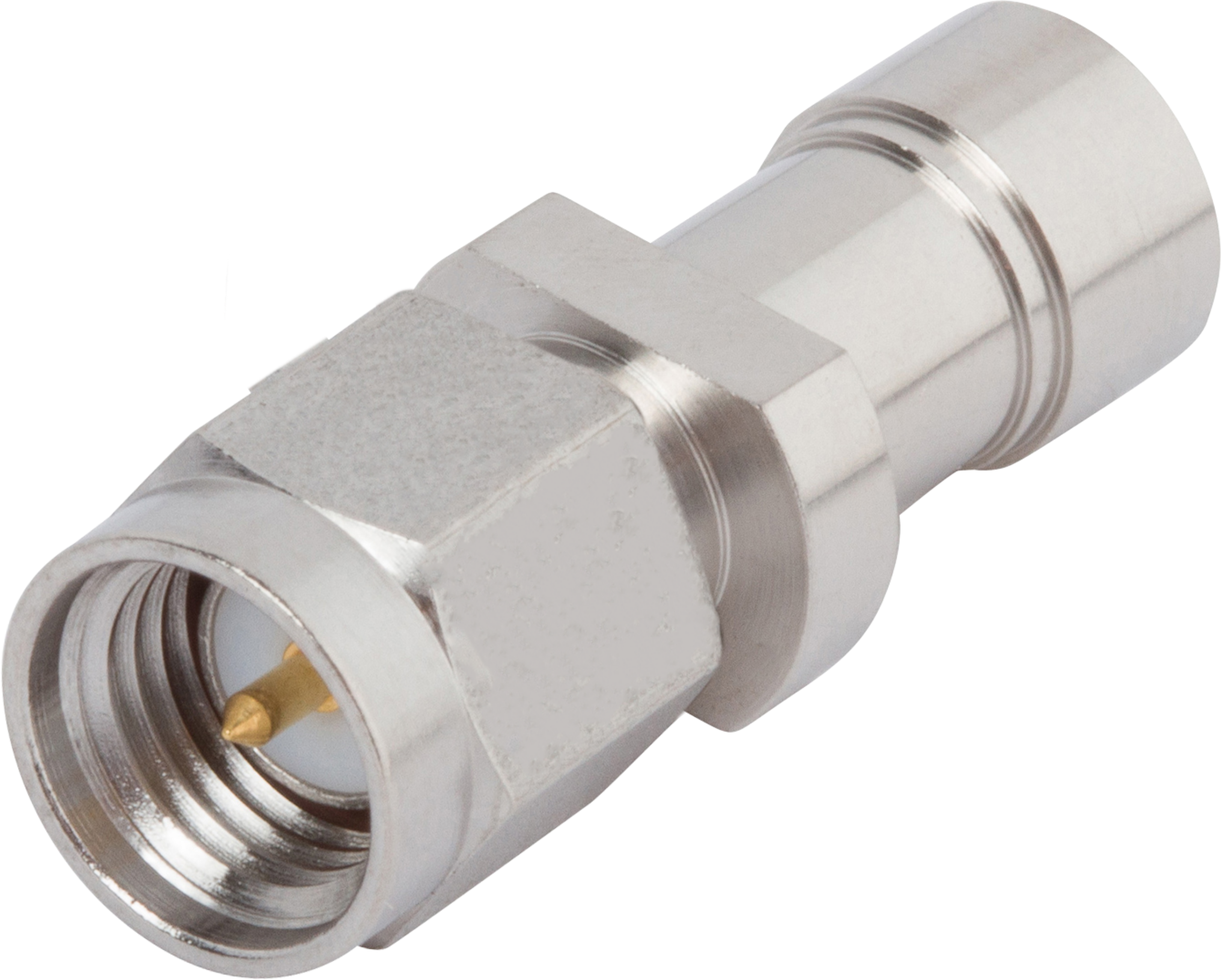

BMZ Male to SMA Male Adapter
