P/N: SF1755-6105

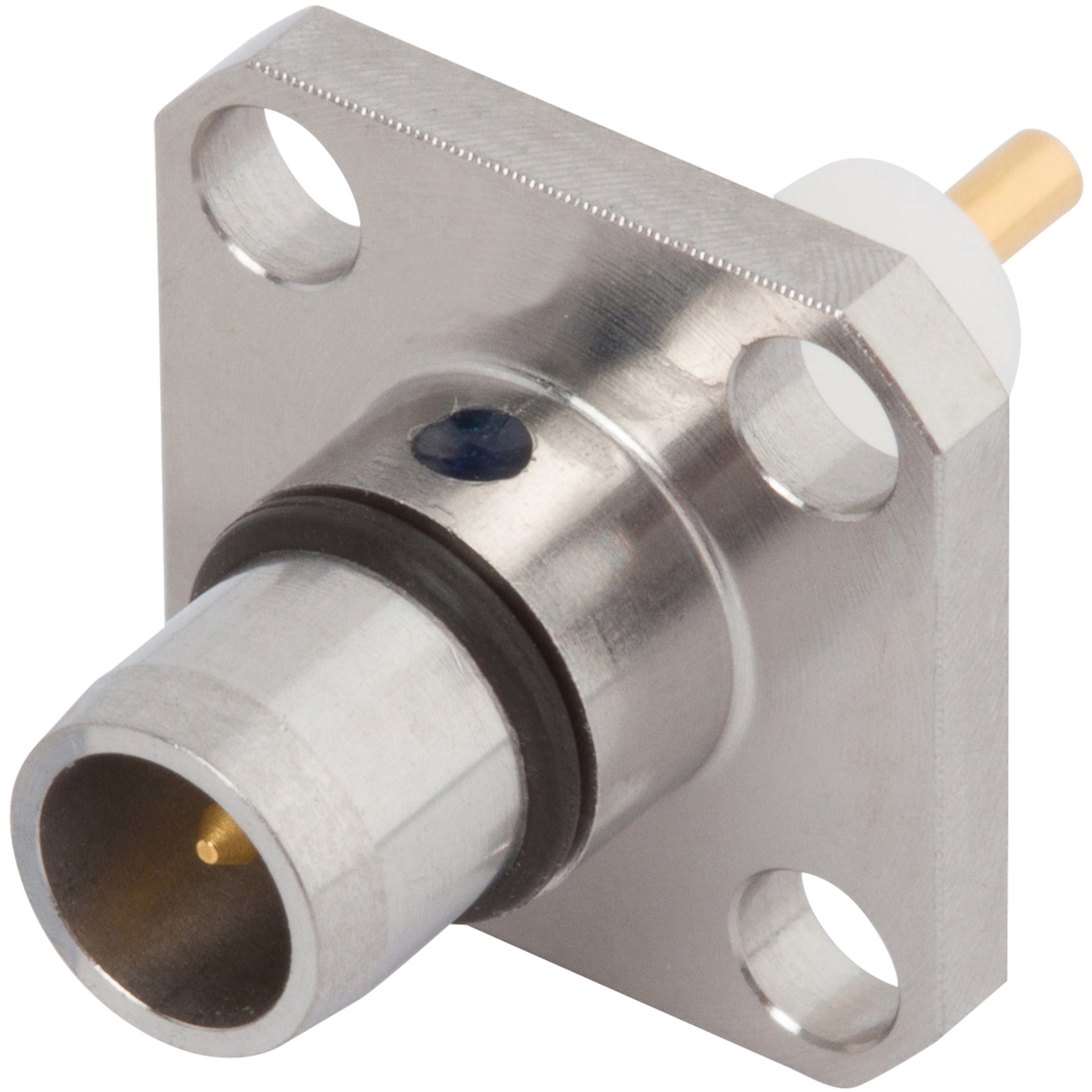

BMA Male Flange Mount Connector, 4 Hole (Candlestick)

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series BMA
Coupling Push-on
Gender Plug (Male)
Orientation (Body) Straight
Mounting Type Panel
Body Style 4 Hole
Style Candlestick
Finish Passivated
Number of Ports Single
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 5000
Withdrawal Force 1.5 lbs
Insertion Force 3.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BMA
Coupling Push-on
Gender Plug (Male)
Orientation (Body) Straight
Mounting Type Panel
Body Style 4 Hole
Style Candlestick
Finish Passivated
Number of Ports Single
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 5000
Withdrawal Force 1.5 lbs
Insertion Force 3.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   SF1750-6101

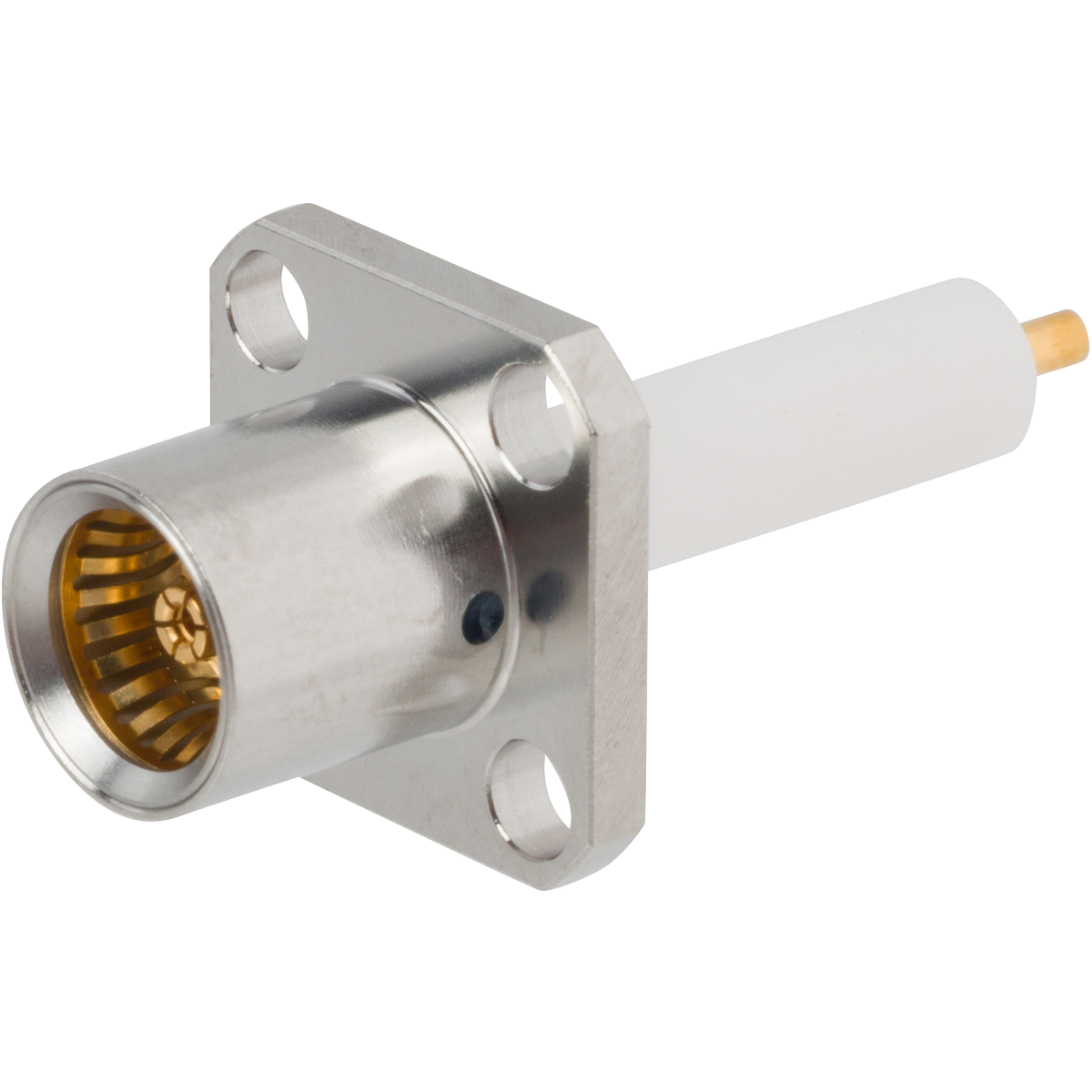

BMA Female Flange Mount Connector, 4 Hole (Candlestick)

Available Inventory: 20
SF1750-6101
BMA Connectors SF1750-6101
Datasheet
Part #   SF1755-6104

BMA Male Flange Mount Connector, 4 Hole (Candlestick)

Available Inventory: 0
SF1755-6104
BMA Connectors SF1755-6104
Datasheet
Part #   SF1711-60013

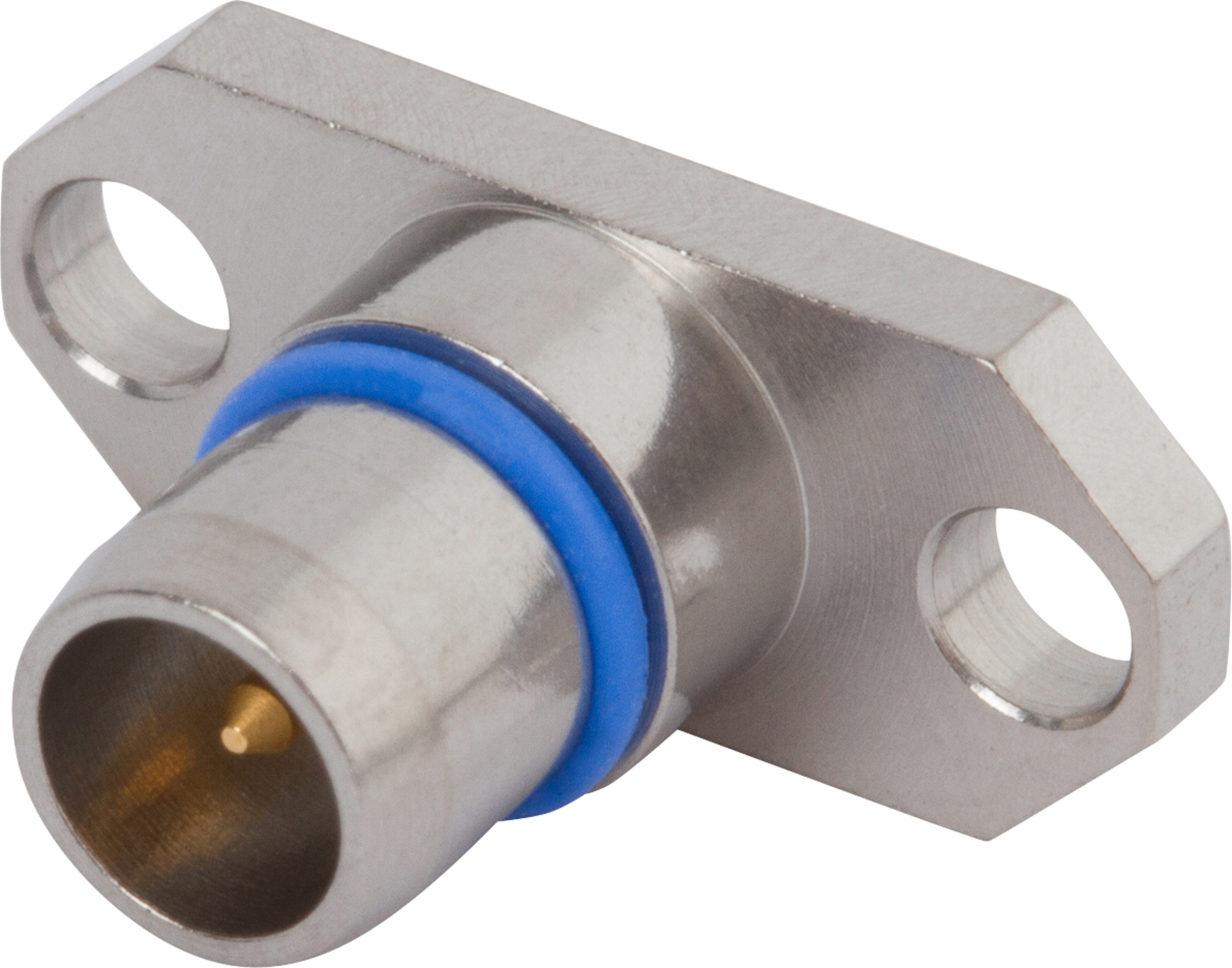

BMA Male Flange Mount Connector, 2 Hole (Accepts .018 Pin)
