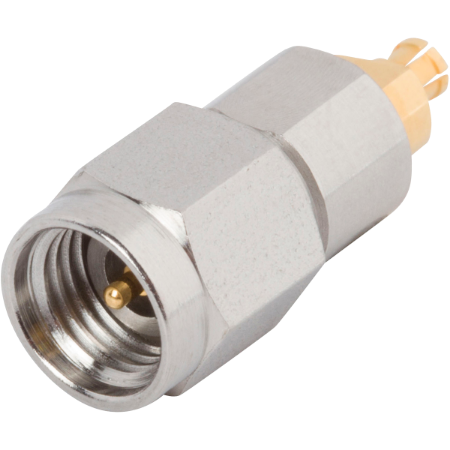

2.92mm Male to SMPM Female Adapter
P/N: SF1115-6085

In stock at Qty Order
Interstate Connecting Components 13
Digi-Key Electronics 7
Mouser Electronics 50 On Order
Heilind Electronics 4
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Orientation (Body) Straight
Coupling Push-on
Gender 2 Jack (Female)
RF Series 2 SMPM
Finish Passivated
Orientation 2 (Body) Straight
Gender Plug (Male)
Electrical
Impedance 50 ohms
Frequency 40 GHz
Dielectric withstanding Voltage 750 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Cycles 500
Intermateability SMA
Mating Torque 7 - 10 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:02:15 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Orientation (Body) Straight
Coupling Push-on
Gender 2 Jack (Female)
RF Series 2 SMPM
Finish Passivated
Orientation 2 (Body) Straight
Gender Plug (Male)
Electrical
Impedance 50 ohms
Frequency 40 GHz
Dielectric withstanding Voltage 750 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Cycles 500
Intermateability SMA
Mating Torque 7 - 10 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1133-6007

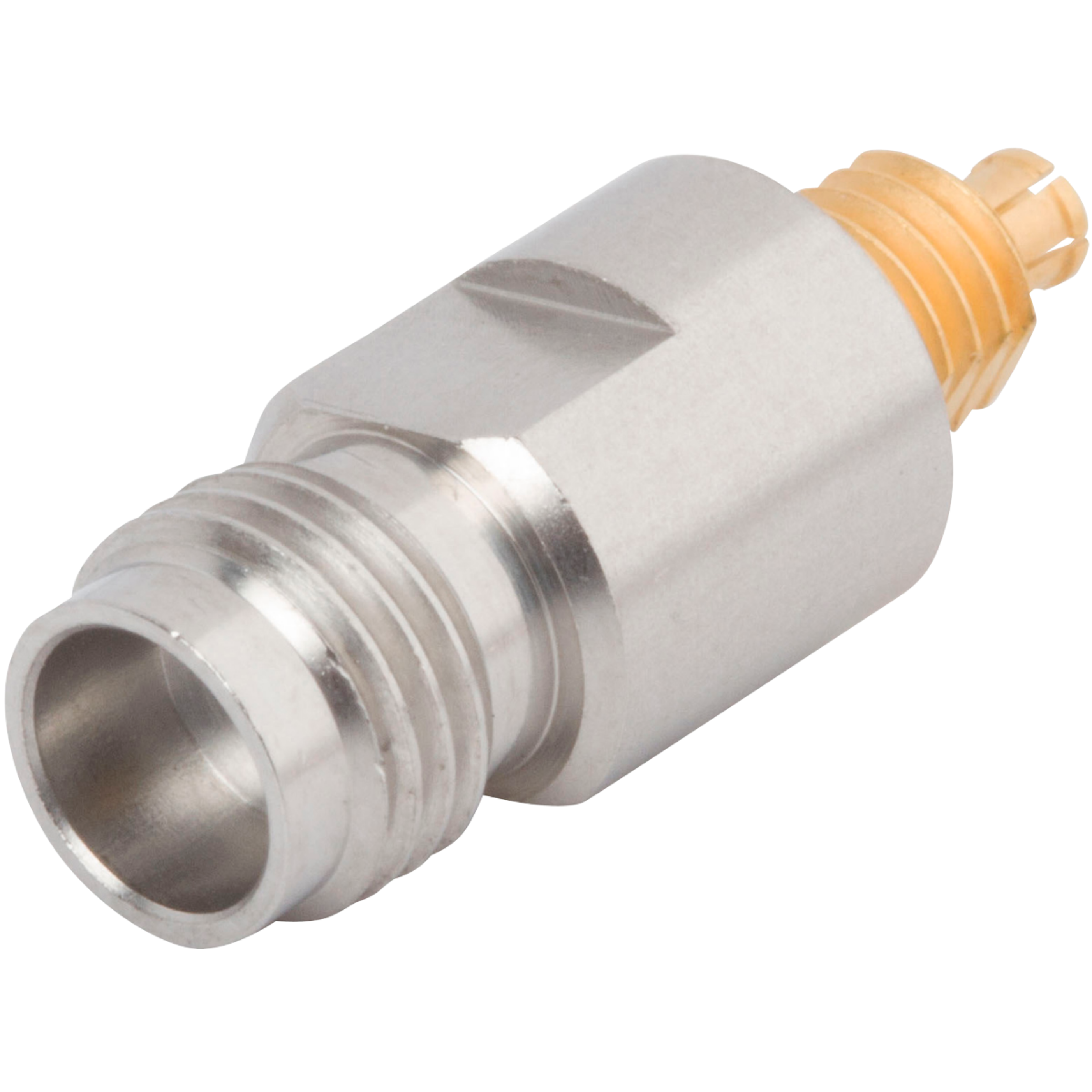

1.85mm Female to SMPM Thread-In Female Adapter

Available Inventory: 13
SF1133-6007
1.85mm Adapters SF1133-6007
Datasheet
Part #   SF1115-6084

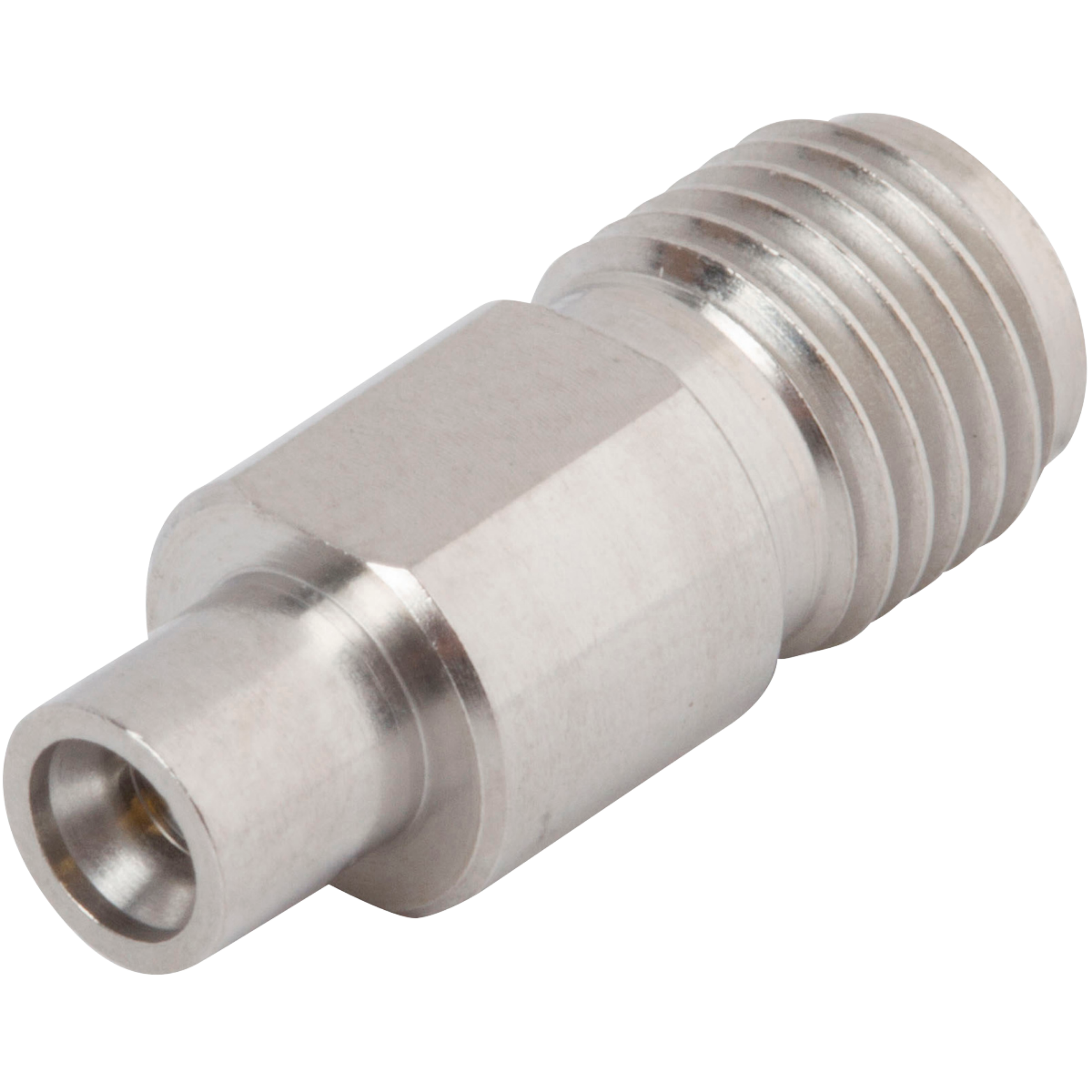

2.92mm Female to SMPM Male Adapter, FD

Available Inventory: 60
SF1115-6084
2.92mm Adapters SF1115-6084
Datasheet
Part #   SF1115-6086

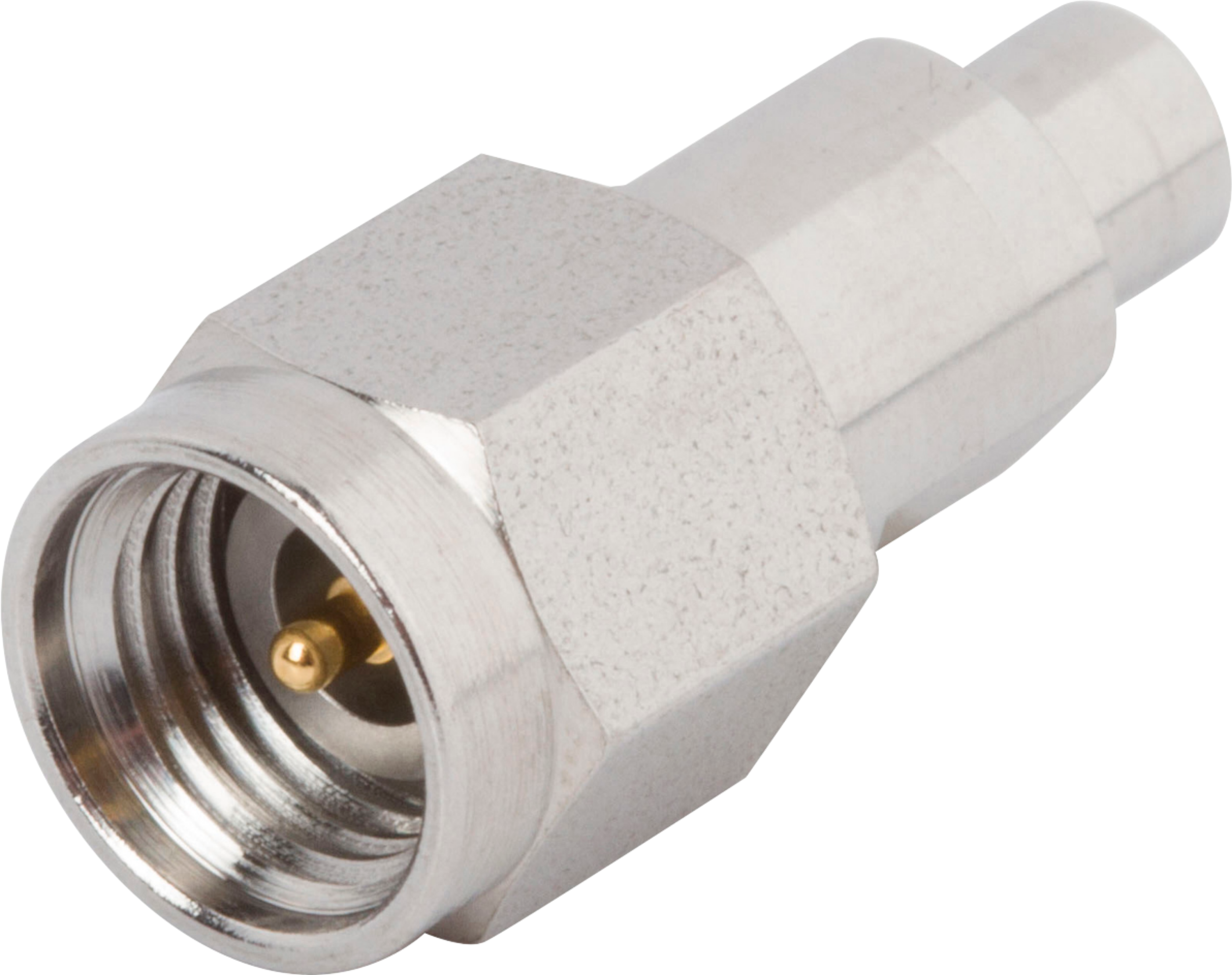

2.92mm Male to SMPM Male Adapter, FD
