P/N: SF1597-6003

2.92mm Male to Female Adapter

In stock at Qty Order
Digi-Key Electronics 98
Mouser Electronics 50
Arrow Electronics Inc 45
Master Electronics 25
Newark 22
Farnell 19
TTI Inc Global Headquarters 15
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Orientation (Body) Straight
Gender Jack (Female)
Coupling Threaded
Finish Passivated
RF Series 2 2.92 mm
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Environmental
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Orientation (Body) Straight
Gender Jack (Female)
Coupling Threaded
Finish Passivated
RF Series 2 2.92 mm
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Environmental
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Customers Also Viewed
Part #   SF1116-6004

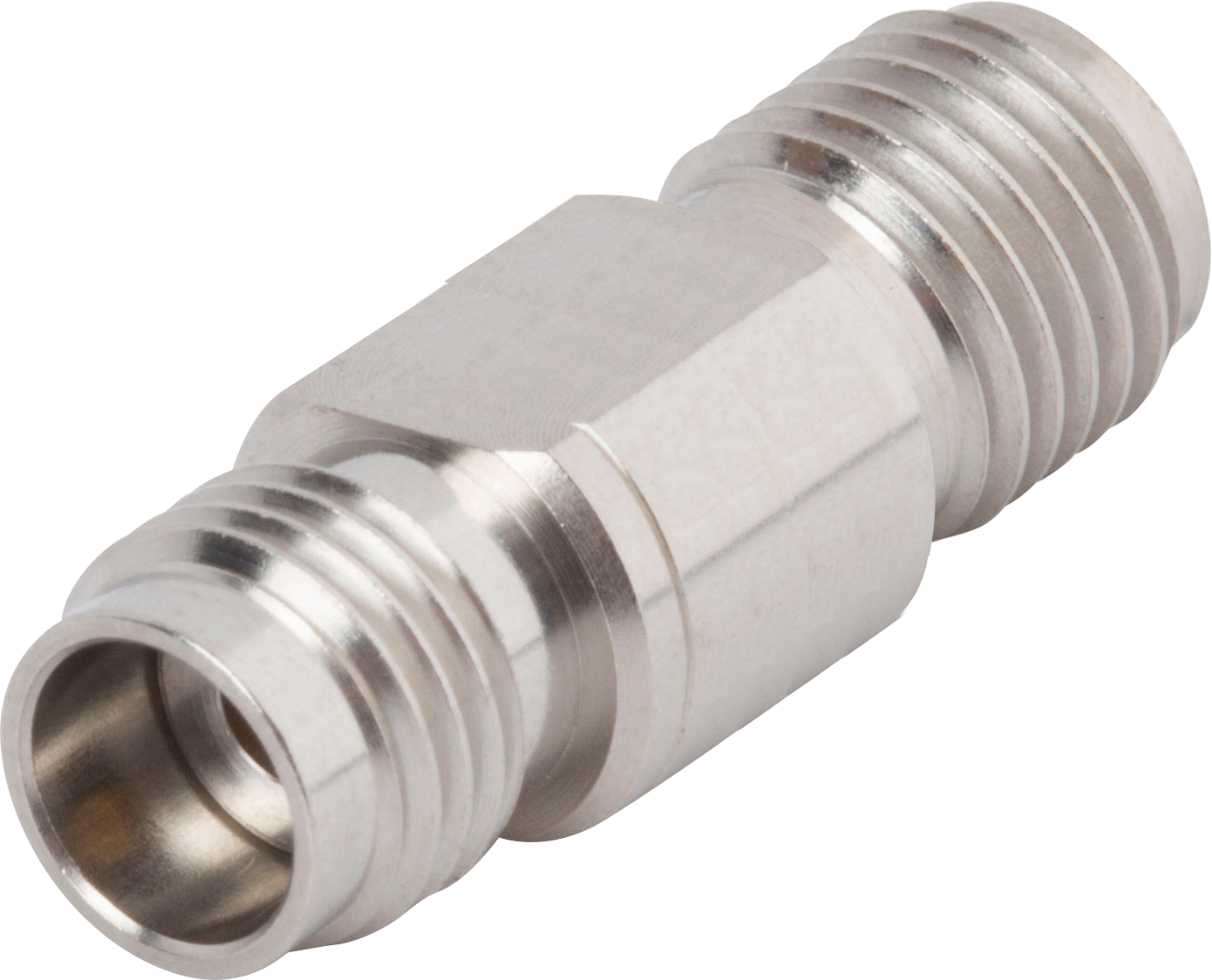

2.4mm Female to 2.92mm Female Adapter

Available Inventory: 141
SF1116-6004
2.4mm Adapters SF1116-6004
Datasheet
Part #   SF1590-6000

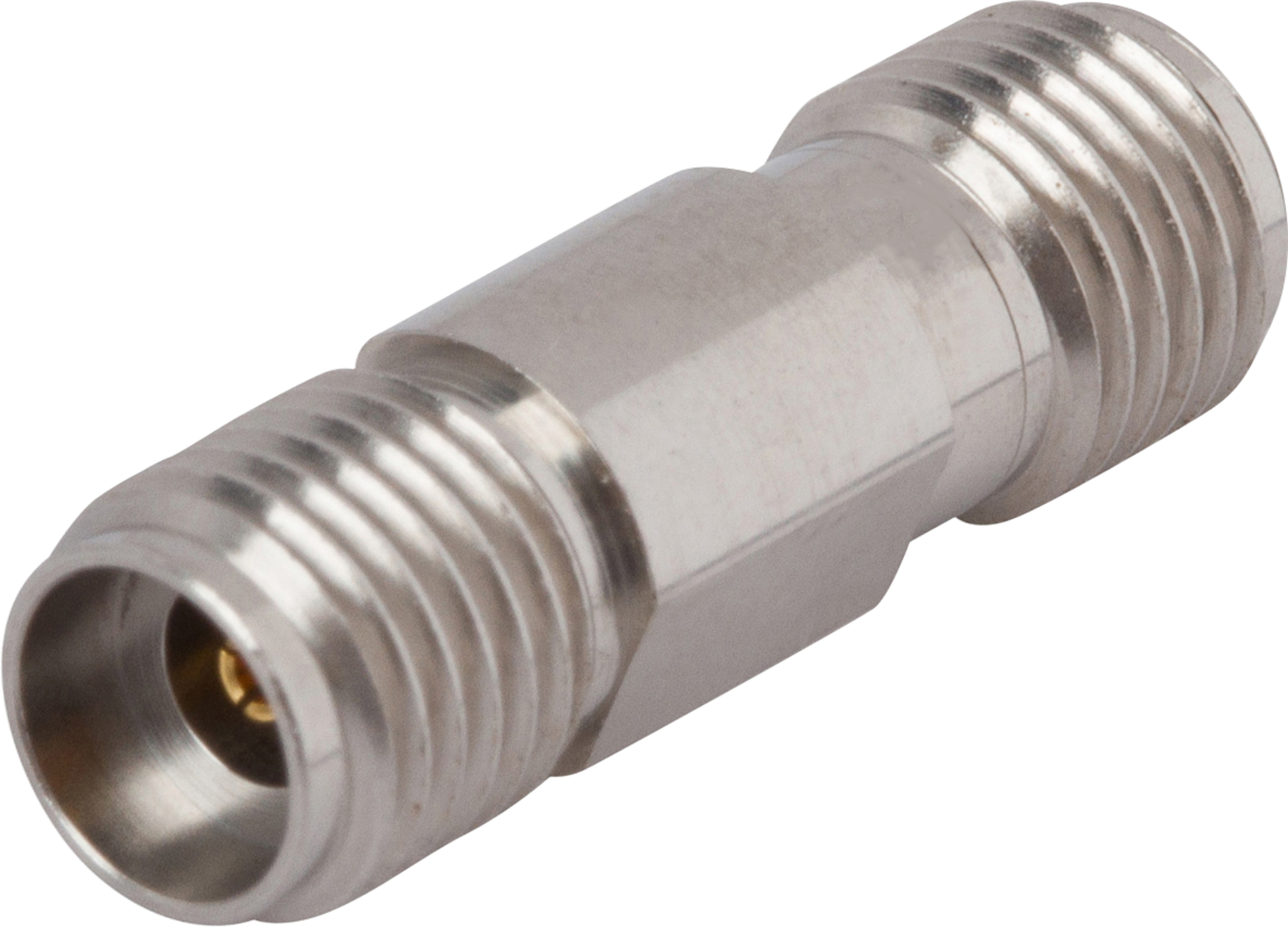

2.92mm Female to Female Adapter

Available Inventory: 302
SF1590-6000
2.92mm Adapters SF1590-6000
Datasheet
Part #   SF1593-6000

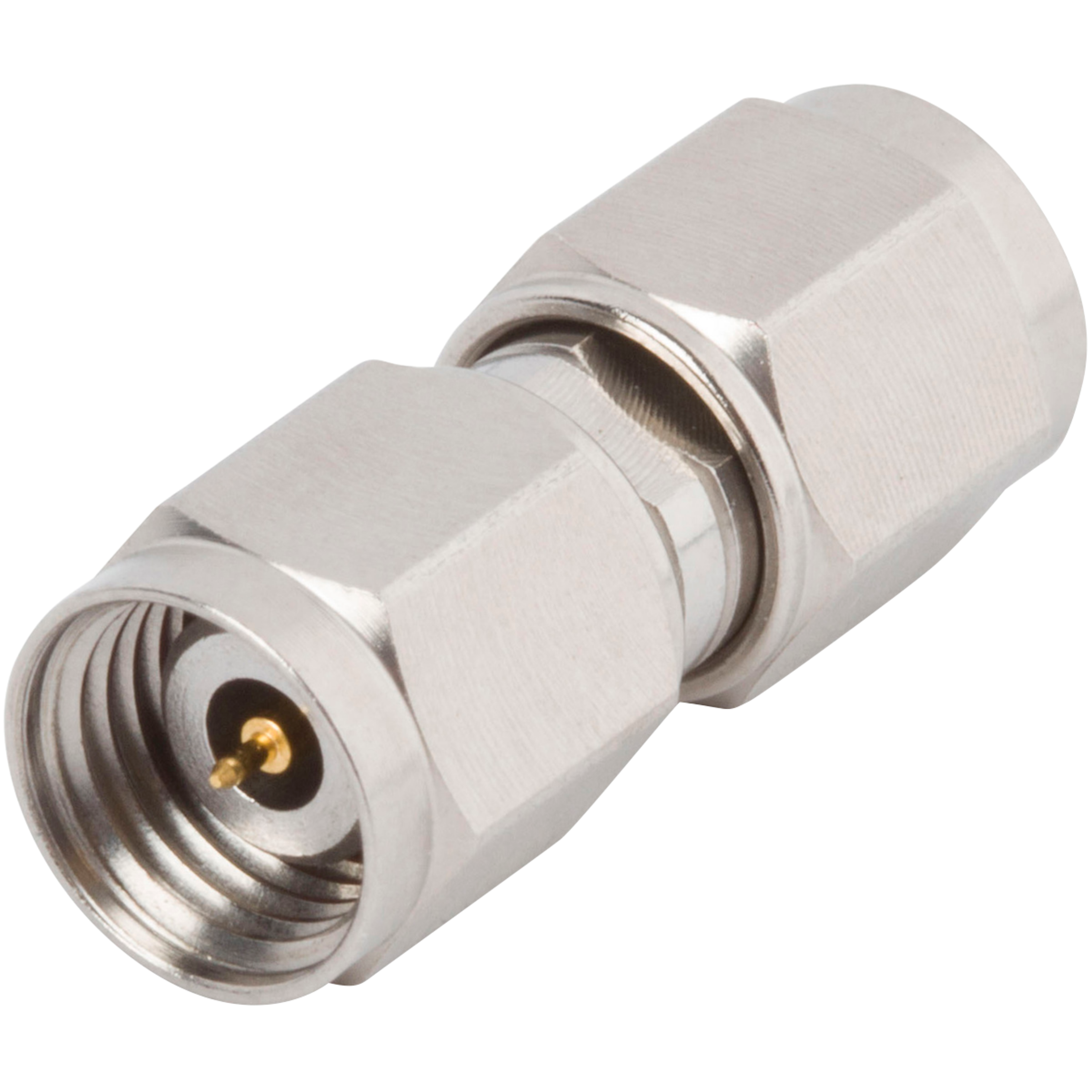

2.92mm Male to Male Adapter
