2.92mm Male to 2.92mm Male Waterproof (IP68 Rated) 12" Cable Assembly for .085 Cable
P/N: 7015-1051

In stock at Qty Order
Newark 25
Farnell 25
TTI Inc Global Headquarters 10
Digi-Key Electronics 6
Products specifications
Attribute name Attribute value
Orientation (Body) Straight
Gender Plug (Male)
RF Series 2.92 mm
Coupling Threaded
Style Waterproof
RF Series 2 2.92 mm
Gender 2 Plug (Male)
IP Rating IP 68
Cable Type 0.085 Flexible Coax
Orientation 2 (Body) Straight
Cable Length 12"
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Inter-mate ability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


CE / UKCA Compliant

This products meets the requirements for CE and UKCA.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 2/5/2023 1:03:27 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Orientation (Body) Straight
Gender Plug (Male)
RF Series 2.92 mm
Coupling Threaded
Style Waterproof
RF Series 2 2.92 mm
Gender 2 Plug (Male)
IP Rating IP 68
Cable Type 0.085 Flexible Coax
Orientation 2 (Body) Straight
Cable Length 12"
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Inter-mate ability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
7015-1073
2.92mm Cable Assemblies 7015-1073
Datasheet
7015-1074
2.92mm Cable Assemblies 7015-1074
Datasheet

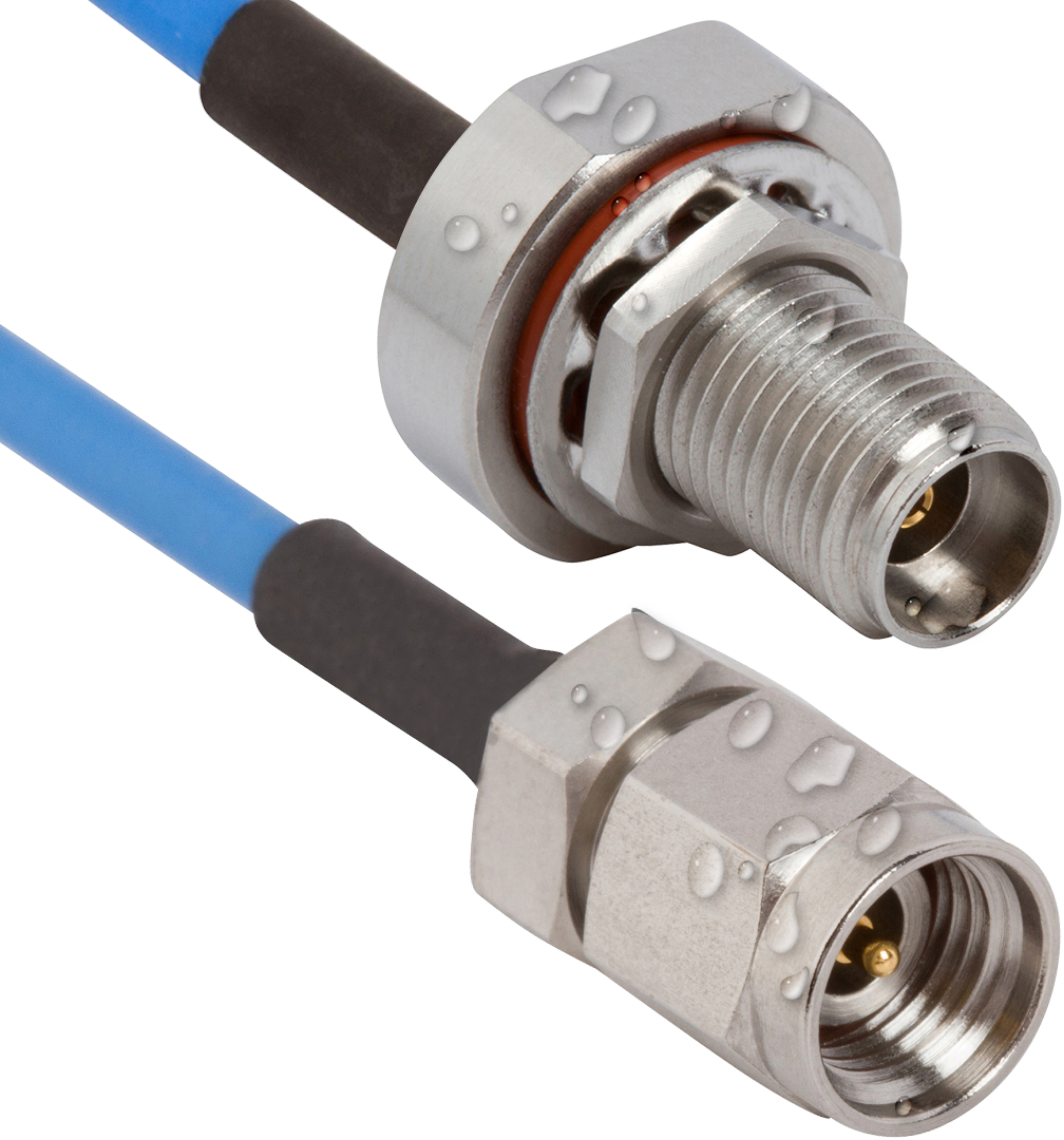

7015-1050
