2.92mm Female Solderless LiteTouch PCB Connector, 2 Hole, with 4.76mm Screws (CPW / Microstrip)
P/N: SF1521-60115-1S

In stock at Qty Order
Master Electronics 90
Onlinecomponents.com 90
Mouser Electronics 696 On Order
Interstate Connecting Components 21
Heilind Electronics 7
Products specifications
Attribute name Attribute value
Family LiteTouch
Gender Jack (Female)
Orientation (Body) Straight
RF Series 2.92 mm
Body Style 2 Hole
Mounting Type PCB Vertical Launch
Coupling Threaded
Termination Style Solder-free
Number of Ports Single
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Intermateability SMA
Mating Torque 7 - 10 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:25:09 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family LiteTouch
Gender Jack (Female)
Orientation (Body) Straight
RF Series 2.92 mm
Body Style 2 Hole
Mounting Type PCB Vertical Launch
Coupling Threaded
Termination Style Solder-free
Number of Ports Single
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Intermateability SMA
Mating Torque 7 - 10 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   SF1521-60115

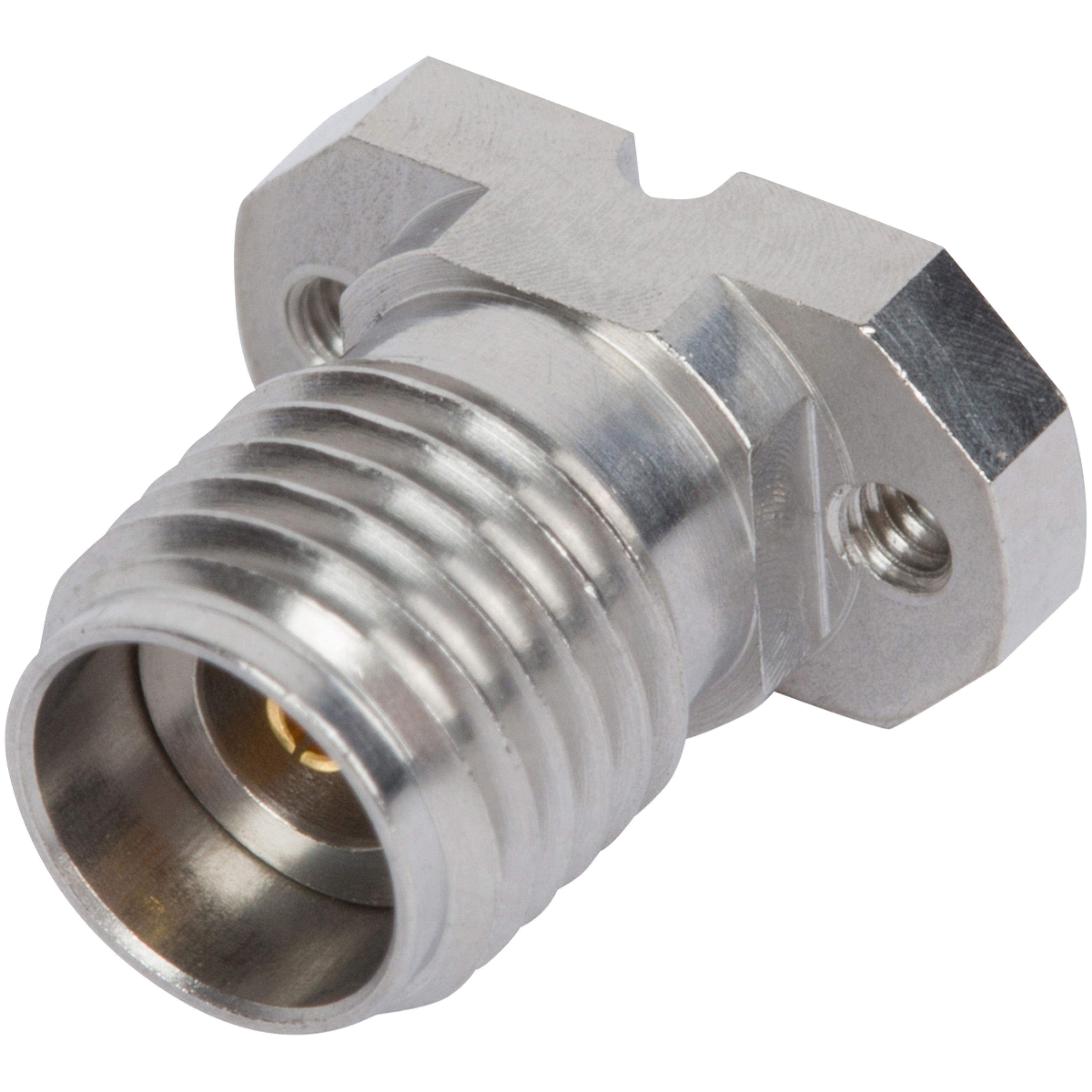

2.92mm Female Solderless LiteTouch PCB Connector, 2 Hole (CPW / Microstrip)

Available Inventory: 518
SF1521-60115
2.92mm Connectors SF1521-60115
Datasheet
Part #   SF1521-60124

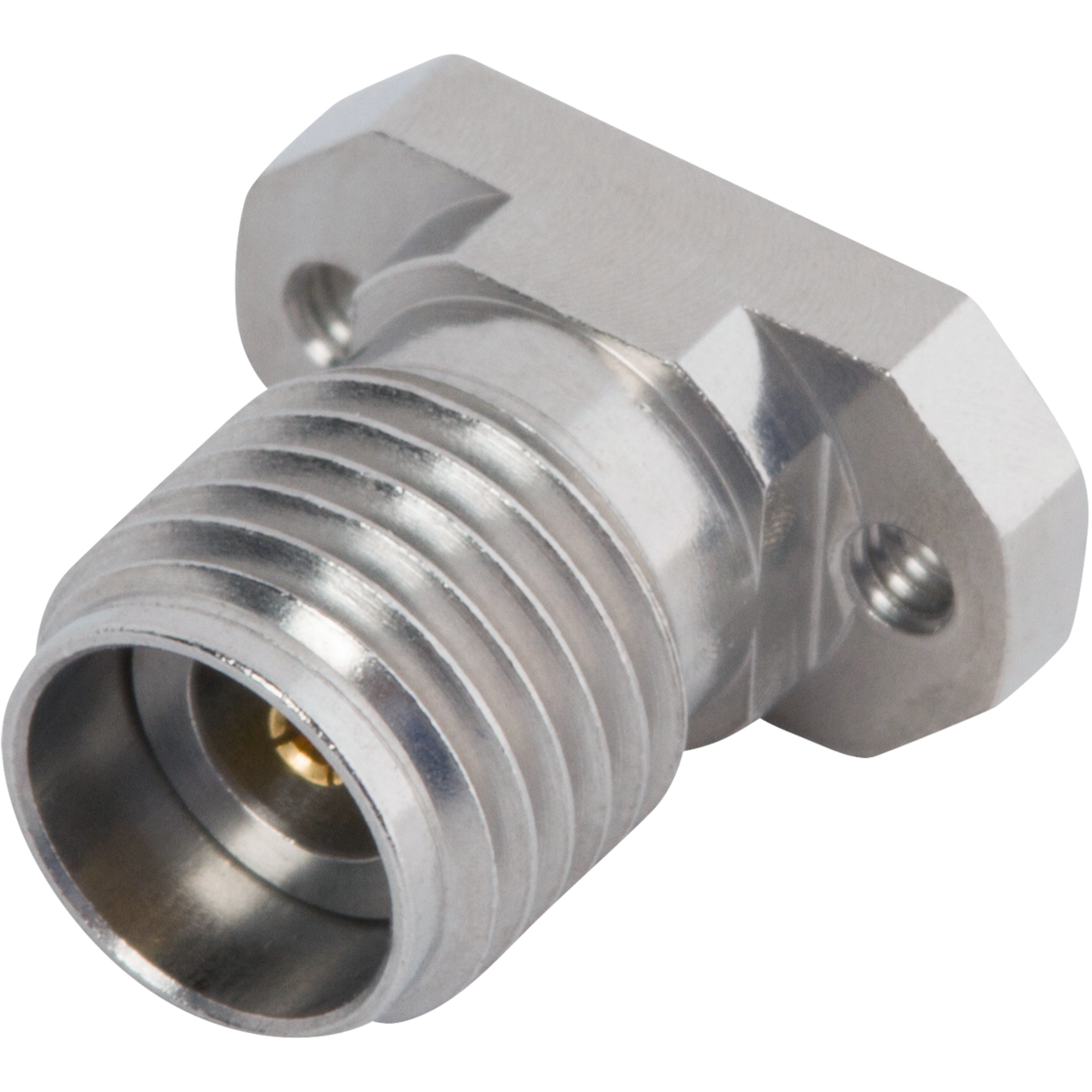

2.92mm Female Solderless LiteTouch PCB Connector, 2 Hole (Stripline)

Available Inventory: 180
SF1521-60124
2.92mm Connectors SF1521-60124
Datasheet

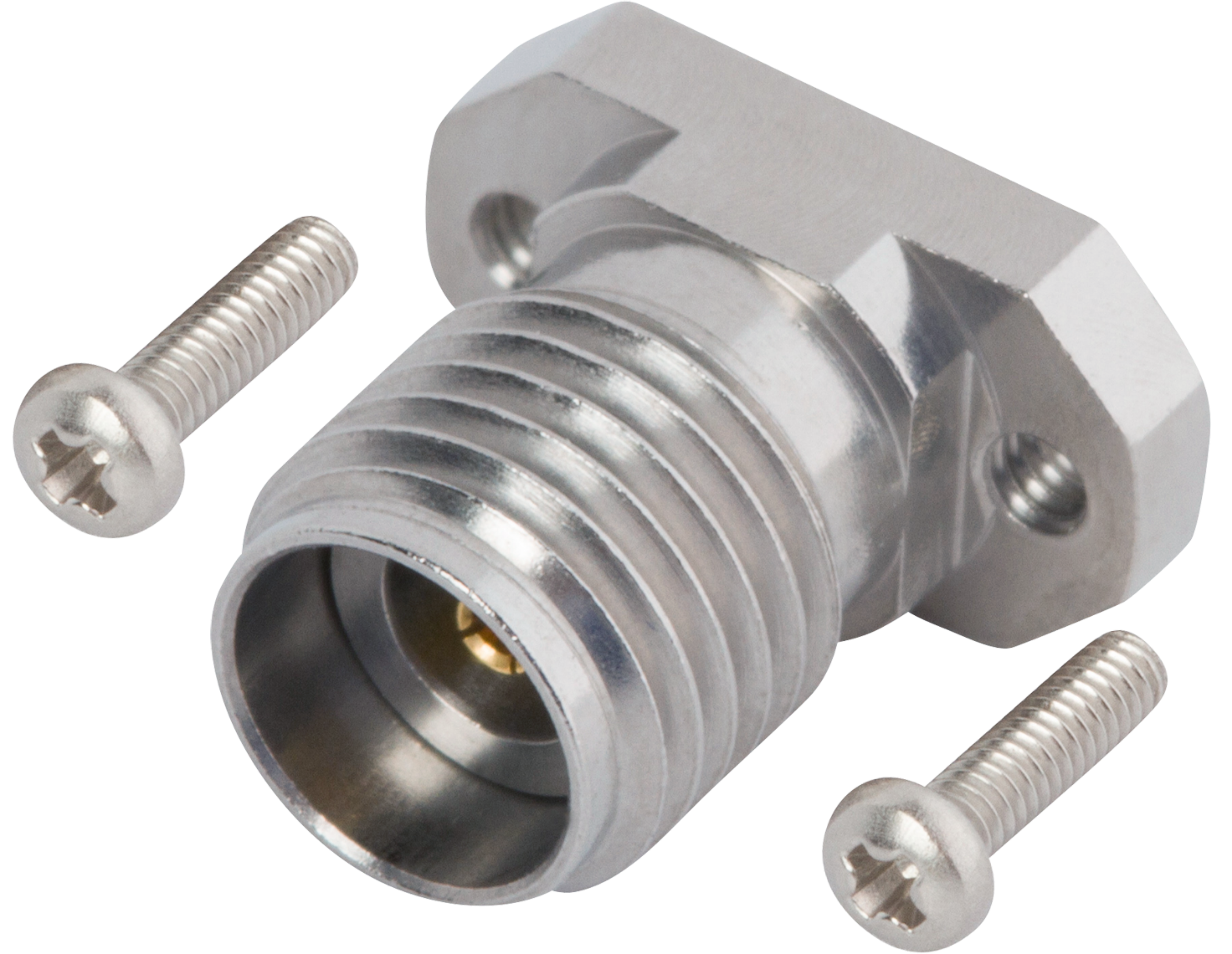

SF1521-60124-1S
