2.92mm Female Bulkhead (EMI Gasket) Connector for .085 Cable
P/N: 1521-60198

In stock at Qty Order
Mouser Electronics 100
Newark 45
Farnell 45
Digi-Key Electronics 31
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type Panel
Body Style Jamnut/Bulkhead
Finish Passivated
Cable Type 0.085 Flexible Coax
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 750 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:28:56 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type Panel
Body Style Jamnut/Bulkhead
Finish Passivated
Cable Type 0.085 Flexible Coax
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 750 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   1115-6131

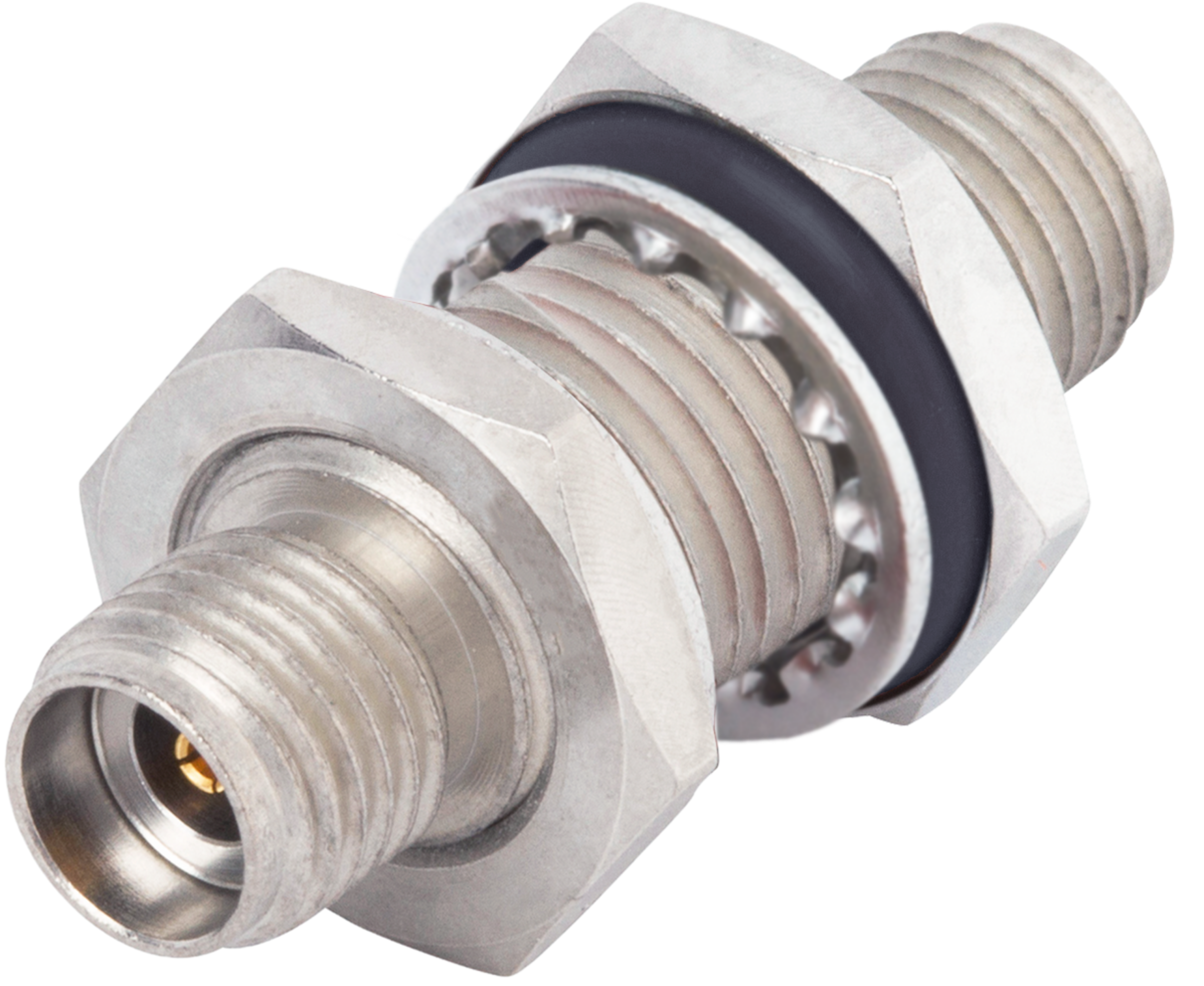

2.92mm Female to Female Bulkhead (EMI Gasket) Adapter
