P/N: SF1521-60025

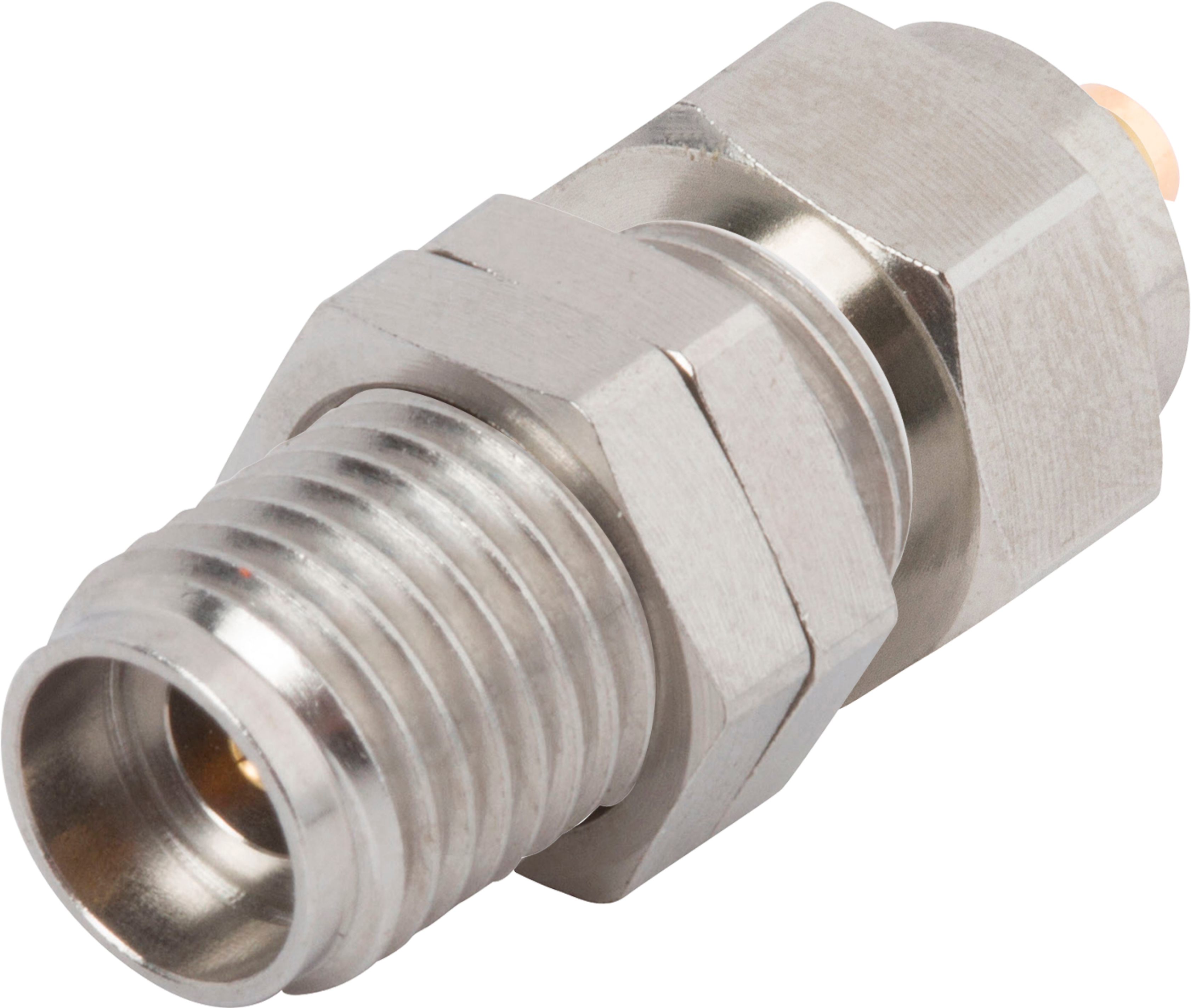

2.92mm Female Bulkhead Connector for .085 Cable

In stock at Qty Order
Mouser Electronics 83
Digi-Key Electronics 77
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Coupling Threaded
Orientation (Body) Straight
Termination Style Solder
Mounting Type Panel
Number of Ports Single
Cable Type 0.085 Flexible Coax
Finish Passivated
Body Style Jamnut/Bulkhead
Cable Builder Attributes
Cable Builder Left Image 25871
Cable Builder Right Image 25872
Mating Connector SF1511-60069, SF1511-60071
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Inter-mate ability SMA
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Coupling Threaded
Orientation (Body) Straight
Termination Style Solder
Mounting Type Panel
Number of Ports Single
Cable Type 0.085 Flexible Coax
Finish Passivated
Body Style Jamnut/Bulkhead
Cable Builder Attributes
Cable Builder Left Image 25871
Cable Builder Right Image 25872
Mating Connector SF1511-60069, SF1511-60071
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Inter-mate ability SMA
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1521-60039

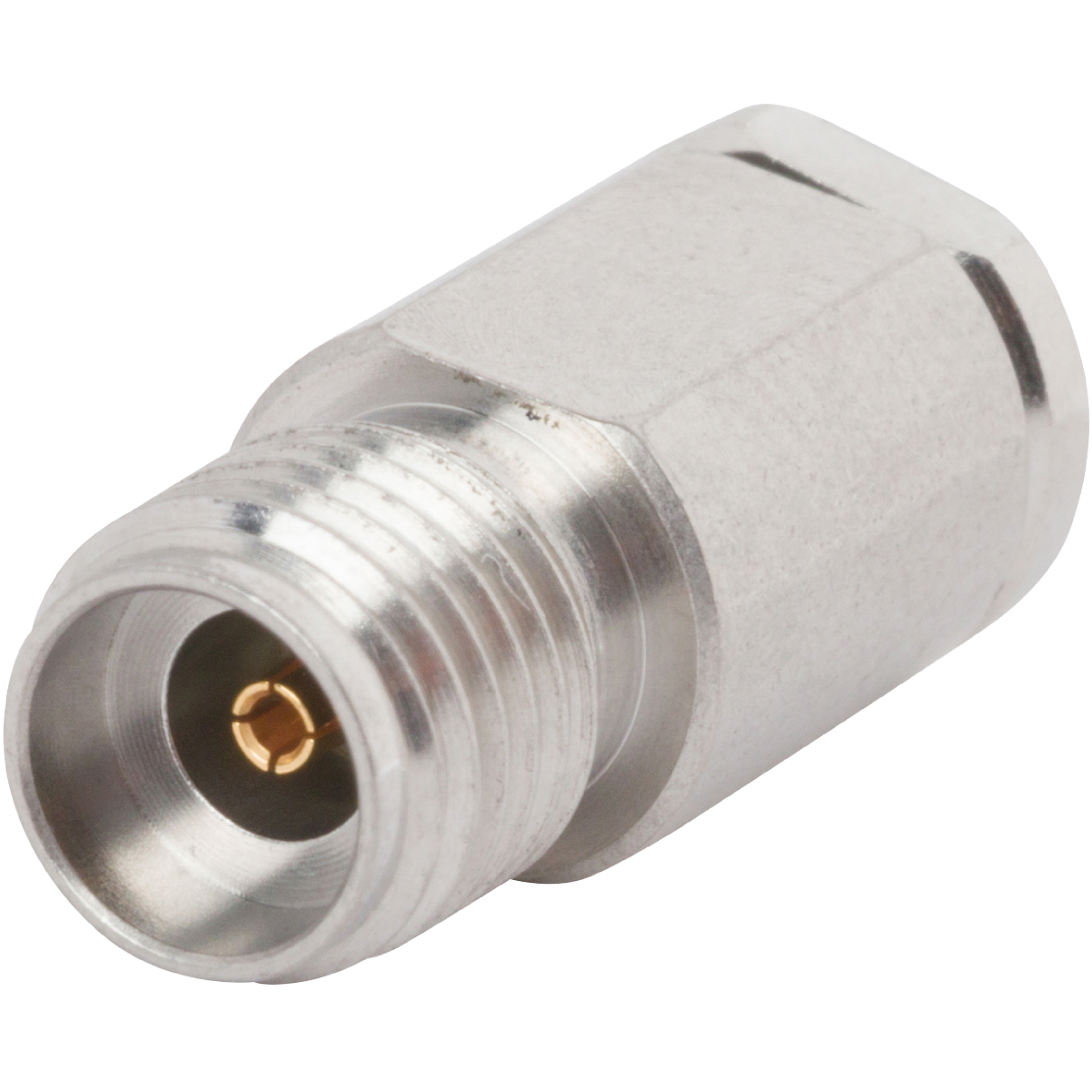

2.92mm Female Connector for .047 Cable
