P/N: 066-15-000

2.92mm Feed-Thru Hermetic Seal

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Coupling Threaded
Mounting Type Panel
Style Hermetic
Orientation (Body) Straight
Number of Ports Single
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Coupling Threaded
Mounting Type Panel
Style Hermetic
Orientation (Body) Straight
Number of Ports Single
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   1211-6041

SMP Male Solder-In Hermetic Connector (.015"), FD"

Available Inventory: 64
1211-6041
SMP Connectors 1211-6041
Datasheet

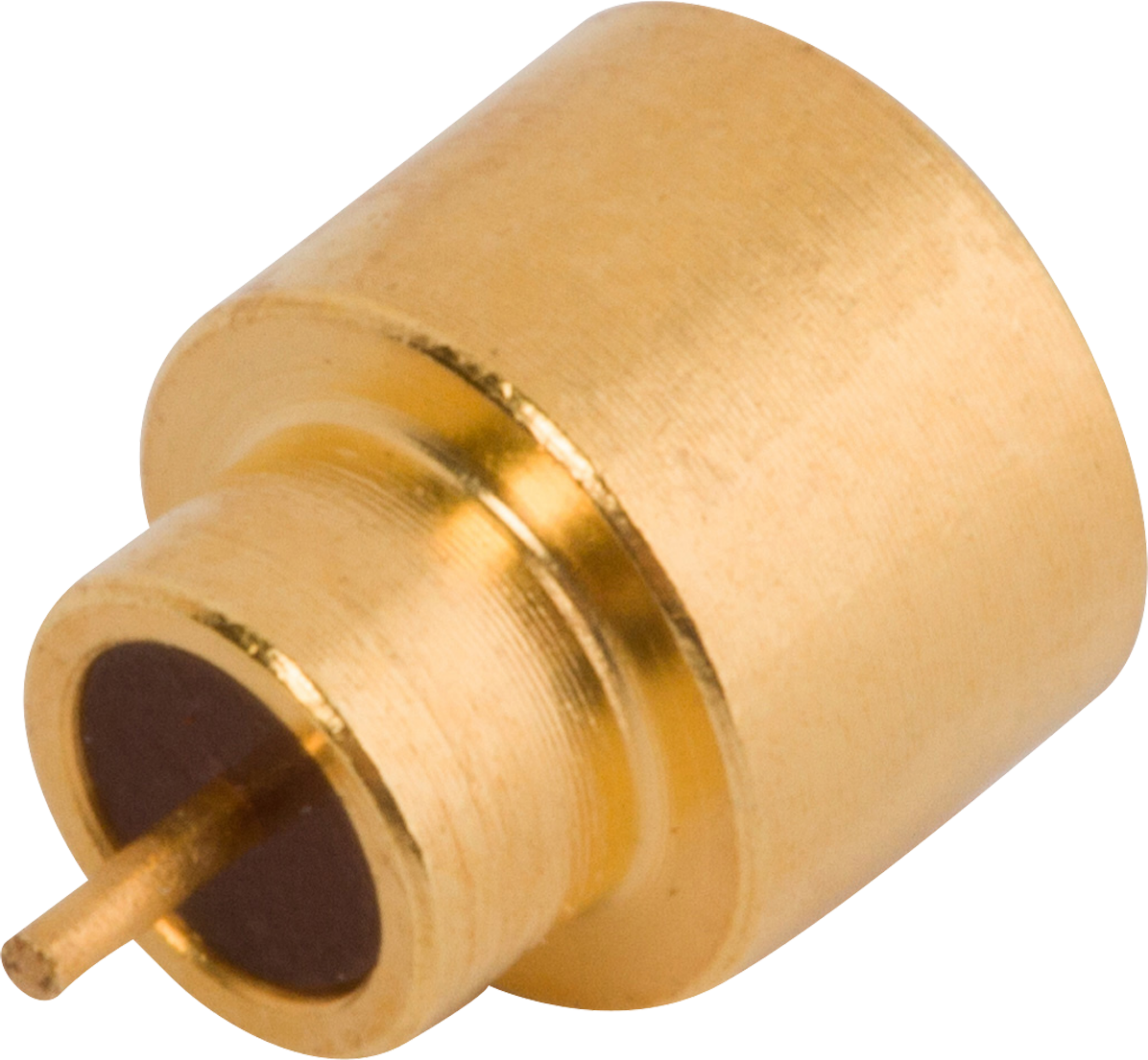

Part #   1211-6042

SMP Male Solder-In Hermetic Connector (.015"), LD"

Available Inventory: 25
1211-6042
SMP Connectors 1211-6042
Datasheet

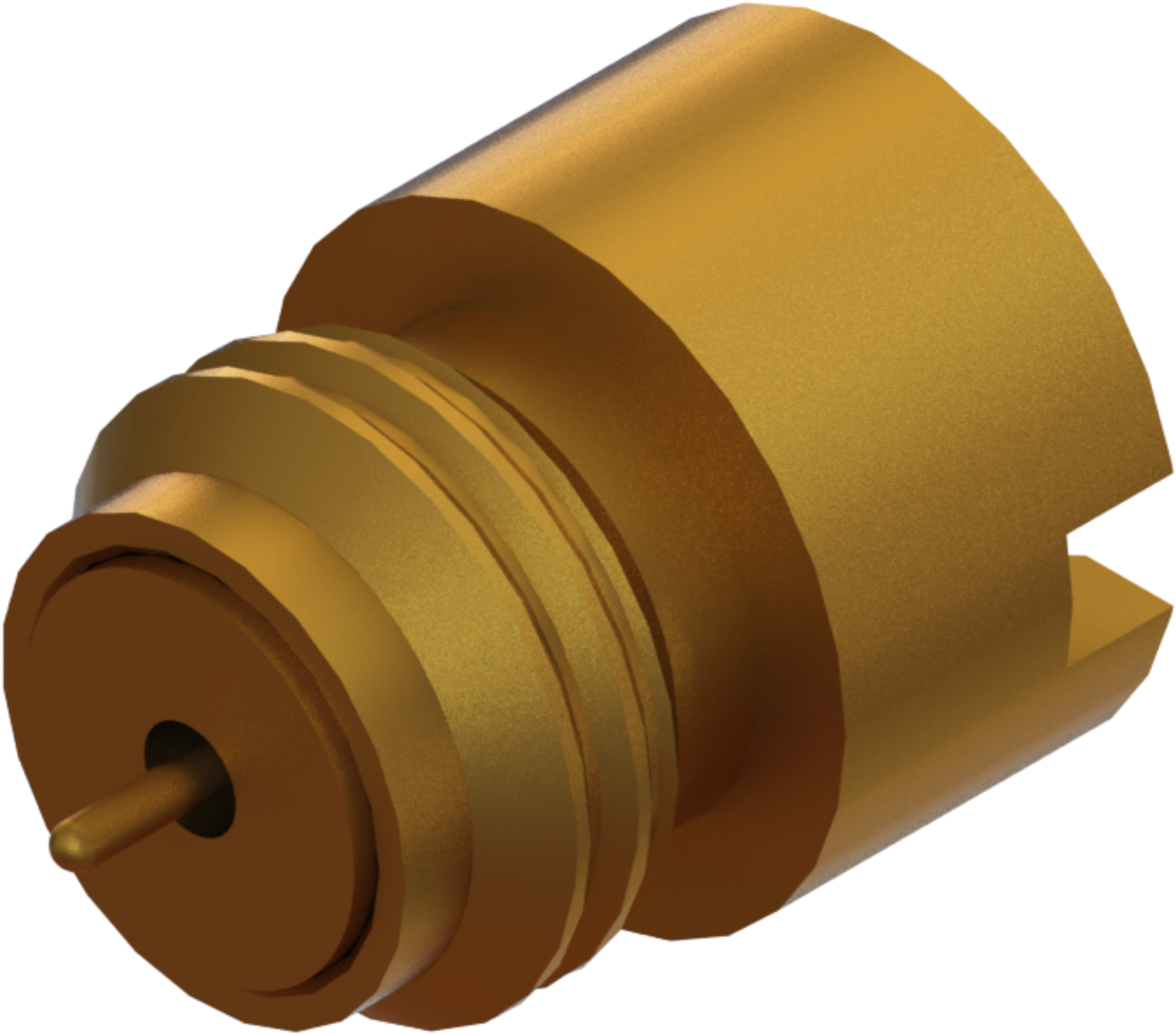

Part #   1211-40008
