2.4mm Male Connector for .047 Cable
P/N: SF1611-60001

In stock at Qty Order
Digi-Key Electronics 54
Mouser Electronics 42
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
Orientation (Body) Straight
Gender Plug (Male)
RF Series 2.4 mm
Coupling Threaded
Number of Ports Single
Finish Passivated
Termination Style Solder
Cable Type 0.047 Flexible Coax
Cable Builder Attributes
Mating Connector SF1621-60036, SF1621-60059
Electrical
Impedance 50 ohms
Frequency 50 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Intermateability 1.85mm
Mating Torque 5 - 7 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:19:55 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Orientation (Body) Straight
Gender Plug (Male)
RF Series 2.4 mm
Coupling Threaded
Number of Ports Single
Finish Passivated
Termination Style Solder
Cable Type 0.047 Flexible Coax
Cable Builder Attributes
Mating Connector SF1621-60036, SF1621-60059
Electrical
Impedance 50 ohms
Frequency 50 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Intermateability 1.85mm
Mating Torque 5 - 7 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Customers Also Viewed
Part #   SF1611-60003

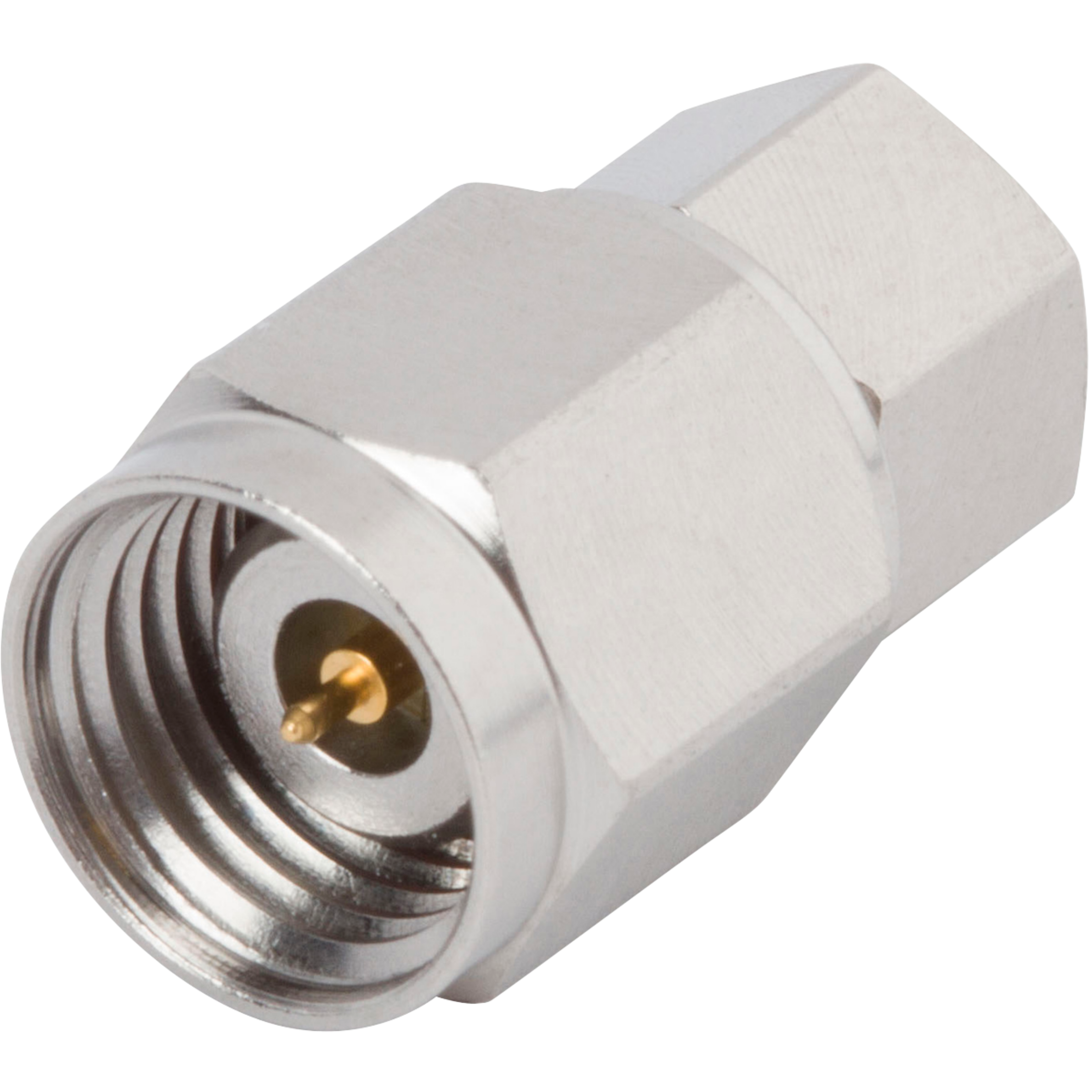

2.4mm Male Connector for .085 Cable

Available Inventory: 66
SF1611-60003
2.4mm Connectors SF1611-60003
Datasheet
Part #   SF1621-60009

2.4mm Female Connector for .085 Cable

Available Inventory: 4
SF1621-60009
2.4mm Connectors SF1621-60009
Datasheet
Part #   SF1621-60014

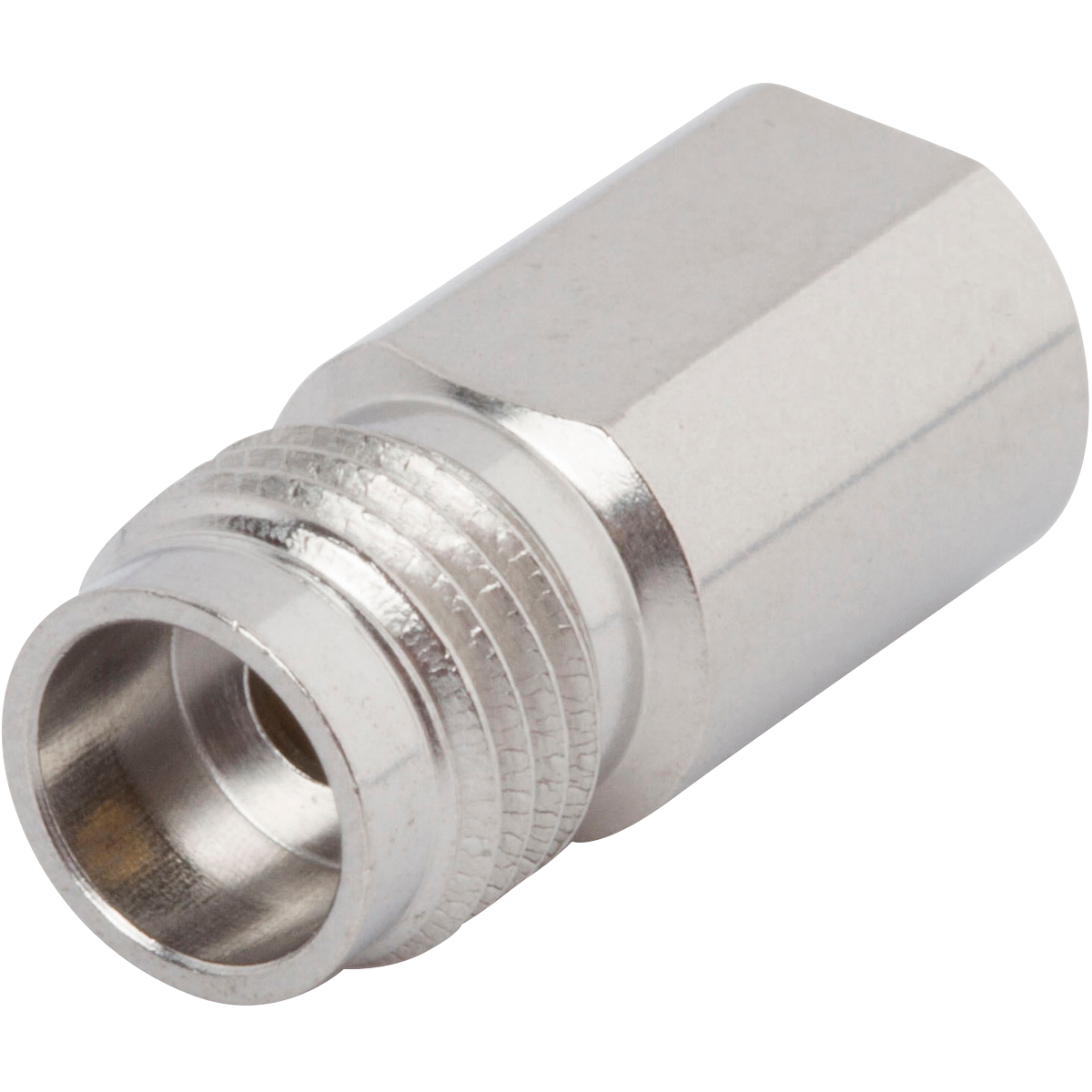

2.4mm Female Connector for .047 Cable
