2.4mm Female to SMPS Male Adapter, SB
P/N: SF1116-6066

This part number is currently unavailable. Please contact us for more information.
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Coupling Threaded
Gender Jack (Female)
Detent Smooth Bore
Finish Passivated
RF Series 2 SMPS
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Orientation (Body) Straight
Electrical
Frequency 50 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Intermateability 1.85mm
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:02:44 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Coupling Threaded
Gender Jack (Female)
Detent Smooth Bore
Finish Passivated
RF Series 2 SMPS
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Orientation (Body) Straight
Electrical
Frequency 50 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Intermateability 1.85mm
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Customers Also Viewed
Part #   SF1138-6015

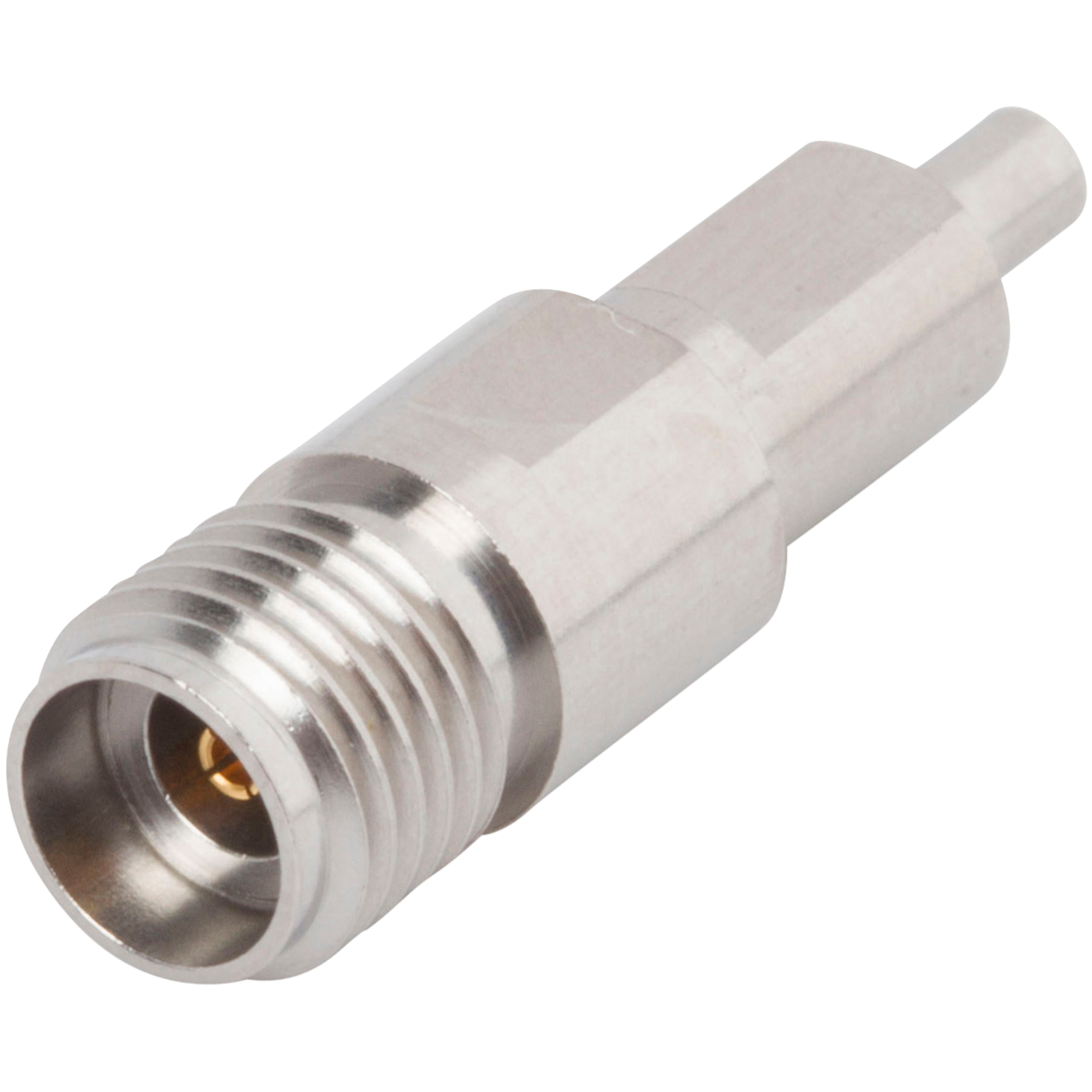

SMPS Male to 2.92mm Female Adapter, FD

Available Inventory: 68
SF1138-6015
SMPS Adapters SF1138-6015
Datasheet
Part #   SF1138-6024

SMPS Male to 2.92mm Female Adapter, SB

Available Inventory: 0
SF1138-6024
SMPS Adapters SF1138-6024
Datasheet
Part #   SF1115-6089

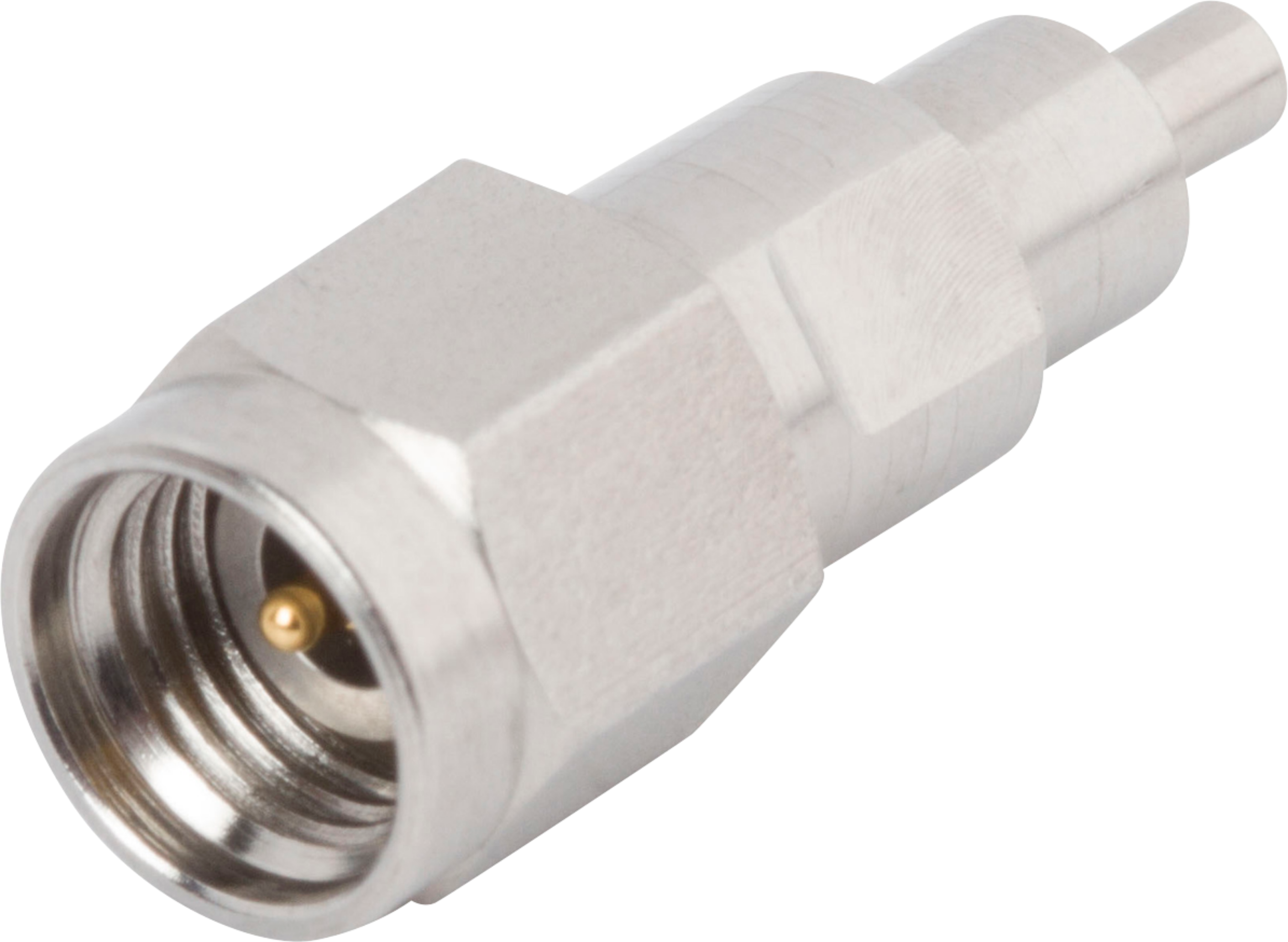

2.92mm Male to SMPS Male Adapter, FD
