1.85mm Female to Female Adapter
P/N: SF1133-6008

In stock at Qty Order
Mouser Electronics 13
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Finish Passivated
RF Series 2 1.85 mm
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Frequency 65 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Inter-mate ability 2.4mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 12/4/2022 1:02:46 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Finish Passivated
RF Series 2 1.85 mm
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Frequency 65 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Inter-mate ability 2.4mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   SF1133-6003

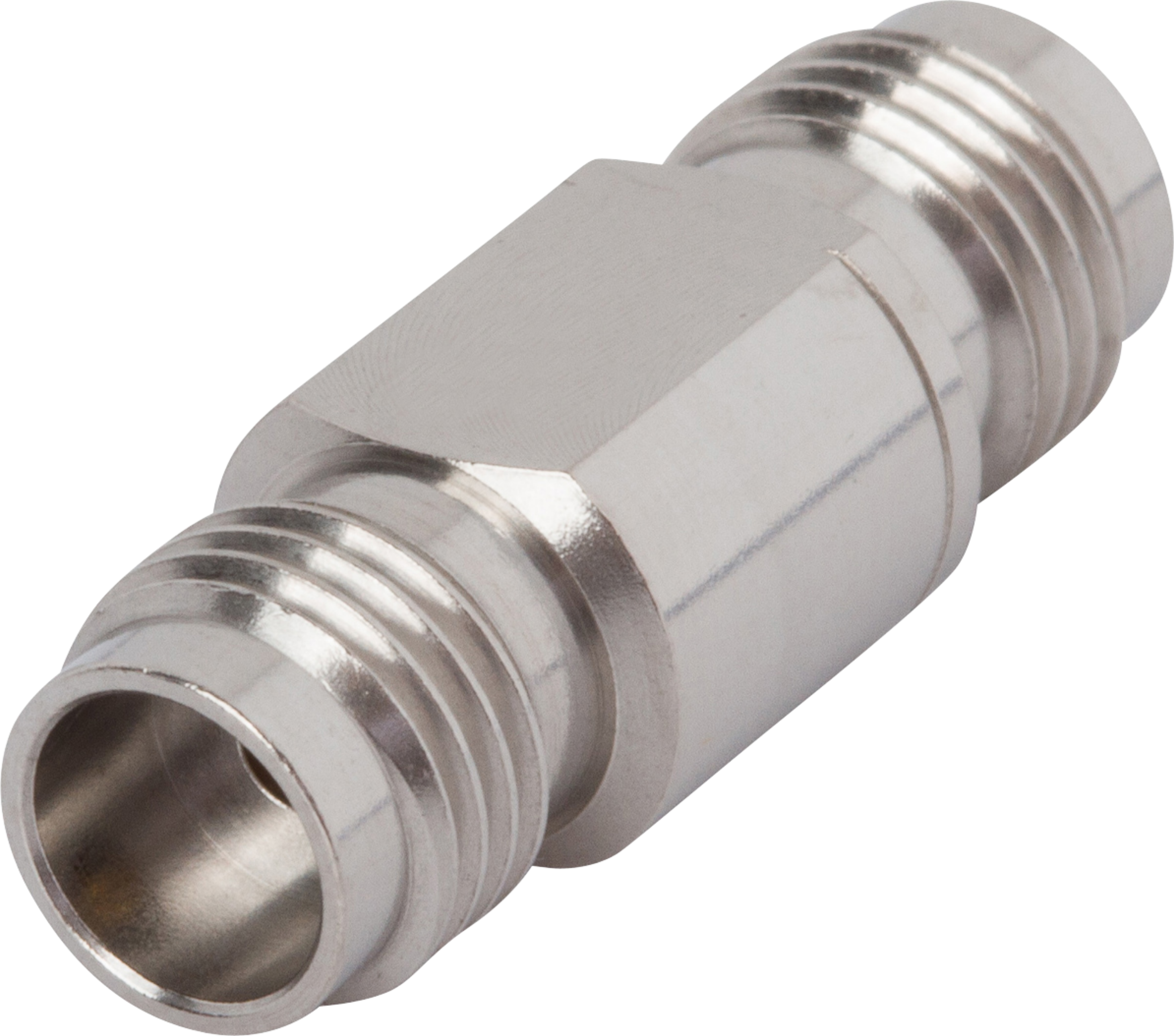

1.85mm Female to 2.4mm Female Adapter

Available Inventory: 11
SF1133-6003
1.85mm Adapters SF1133-6003
Datasheet
Part #   SF1133-6009

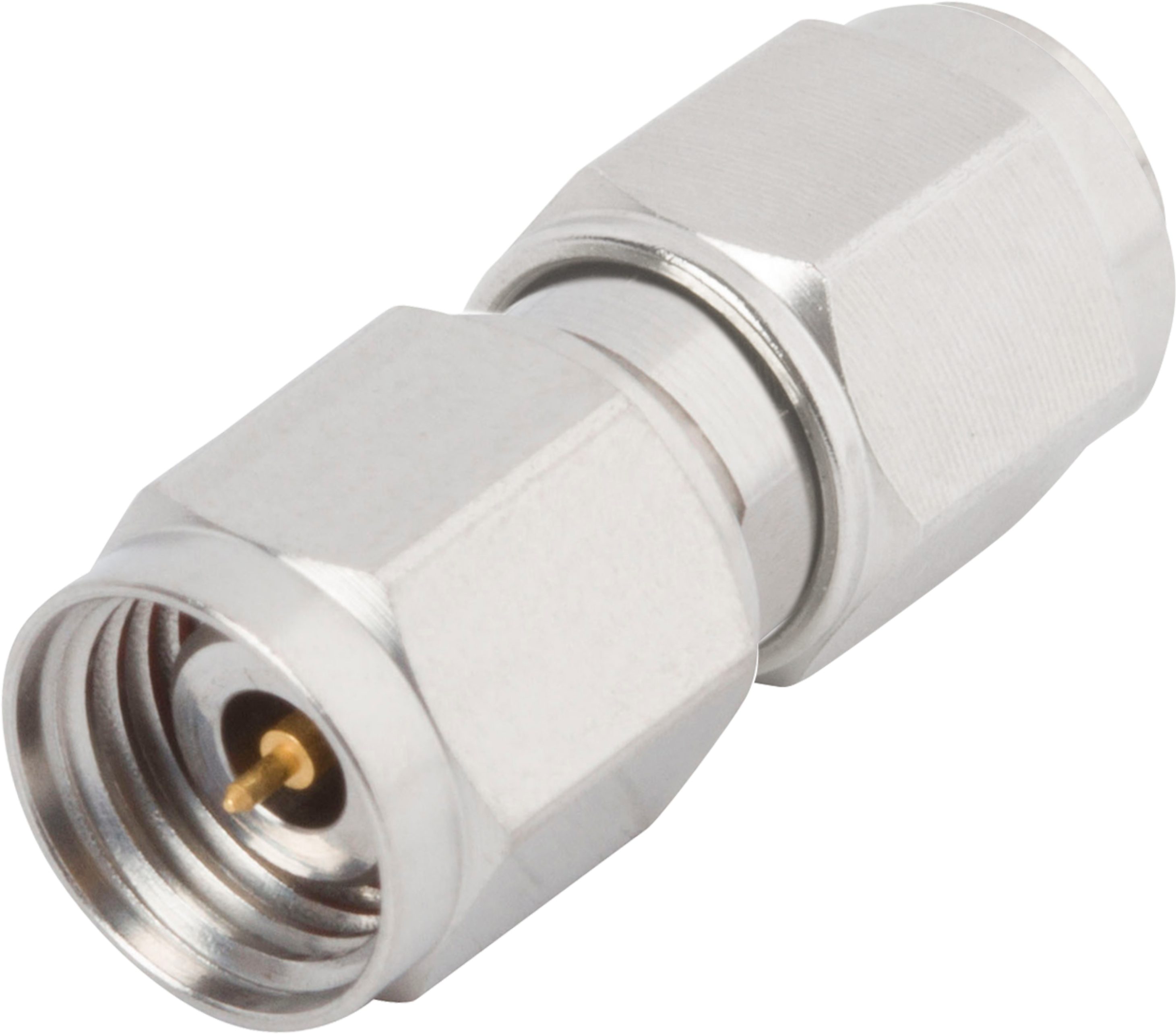

1.85mm Male to Male Adapter

Available Inventory: 15
SF1133-6009
1.85mm Adapters SF1133-6009
Datasheet
Part #   SF1133-6010

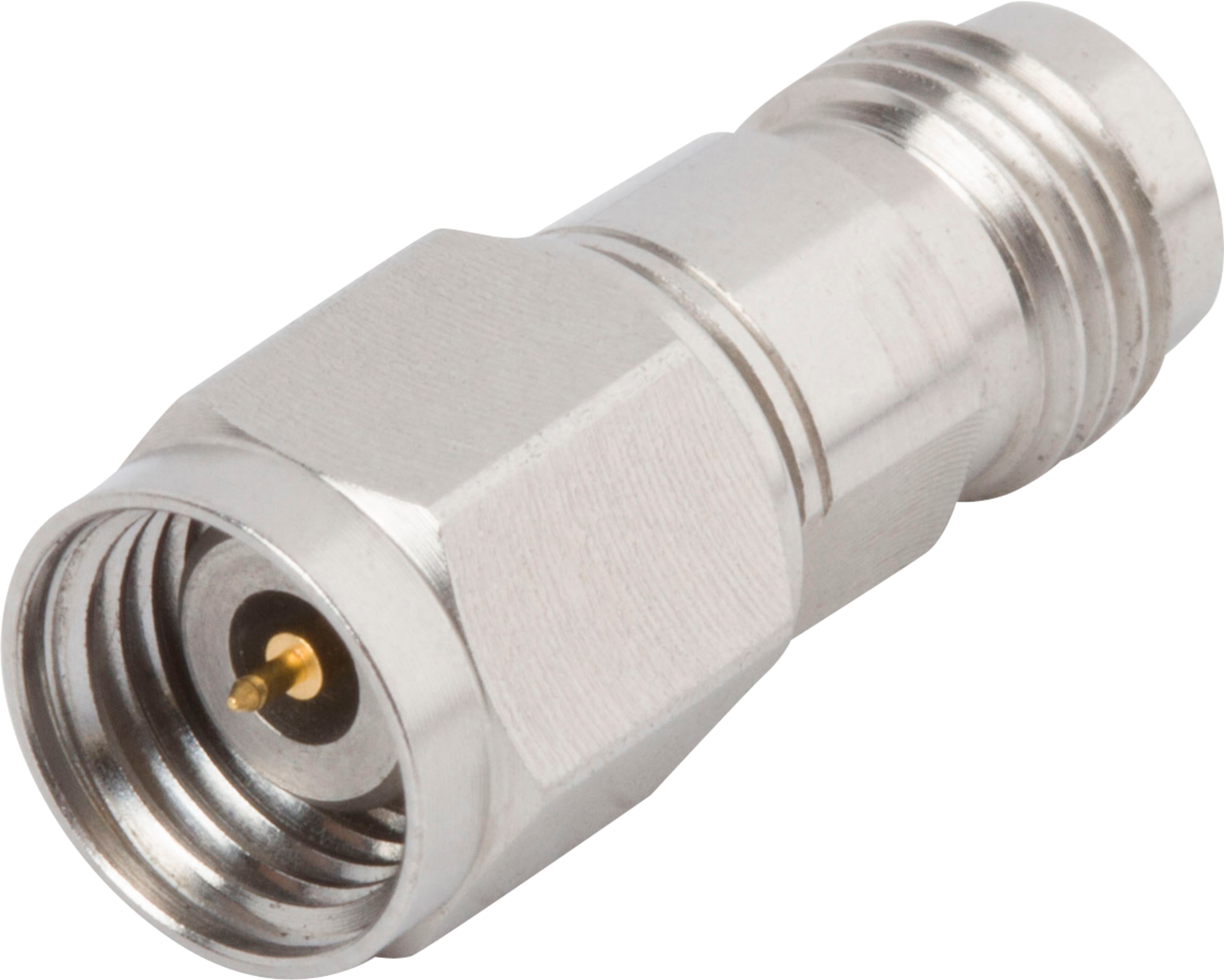

1.85mm Male to Female Adapter
