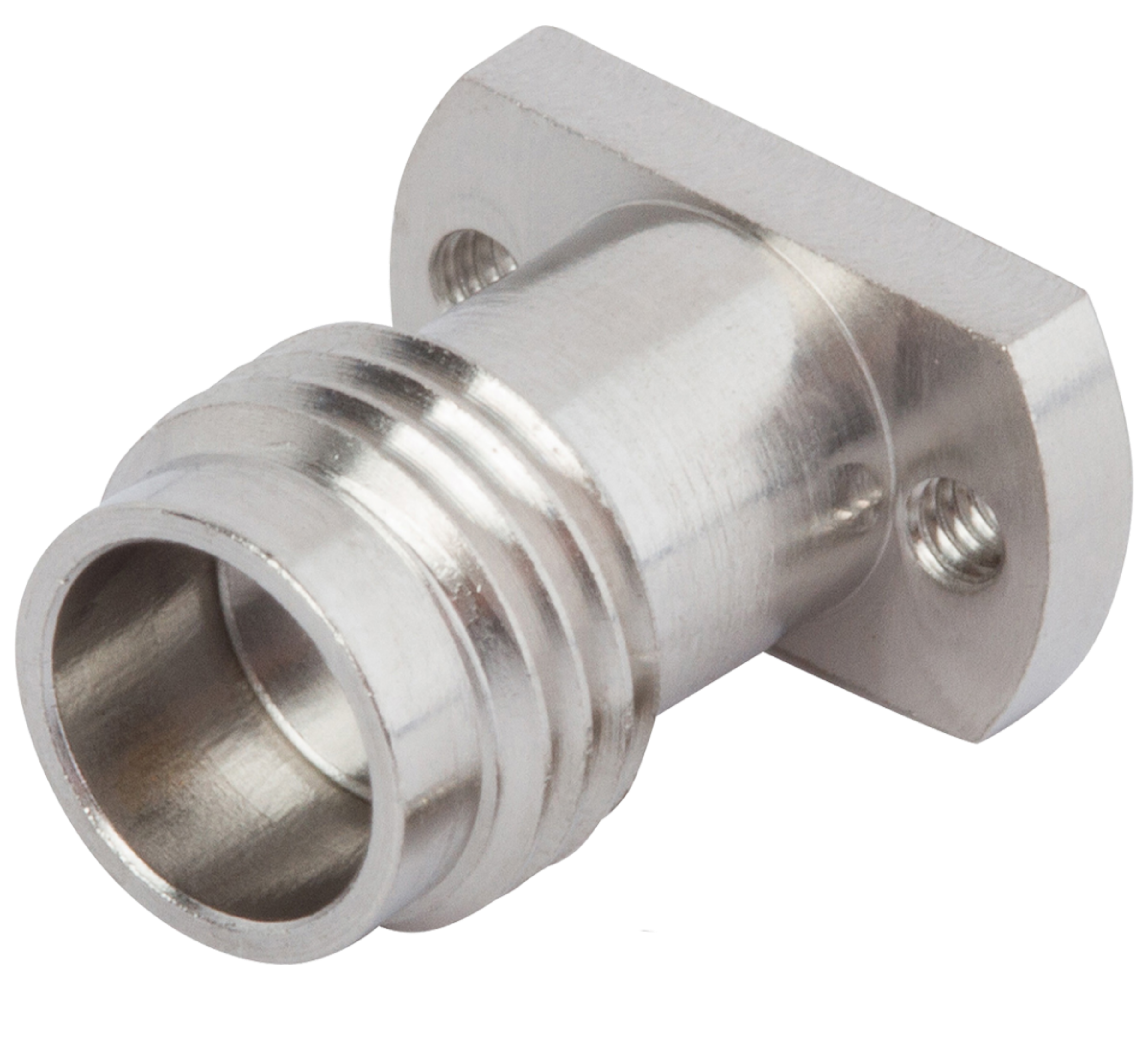

1.85mm Female Solderless PCB Compression Mount Connector, 2 Hole (Stripline)
P/N: SF3321-60011

In stock at Qty Order
Interstate Connecting Components 75
Mouser Electronics 47
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Jack (Female)
Coupling Threaded
Orientation (Body) Straight
Mounting Type PCB Vertical Launch
Termination Style Solder-free
Body Style 2 Hole
Finish Passivated
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Inter-mate ability 2.4mm
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 2/5/2023 1:07:58 AM
