180° Clocked RF Cable Assemblies

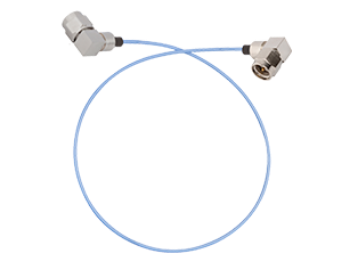

Picture for category 180° Clocked RF Cable Assemblies

SV Microwave has just released a series of 180° clocked cable assemblies that feature right-angle connectors positioned in opposing directions. These high-performance assemblies have been configured to maximize space in applications with tight routing. These fixed-length 6" and 12" cable assemblies are available in SMP and SMA series in both Ø.047" and Ø.085" cable types.

Features / Benefits:

  • Space saving design reduces stress on solder joint
  • Replaces the need for tight bend of cable in order to fit in a tight spot
  • Standard flexible or semi-rigid cable termination

Applications:

  • Rugged high-frequency RF applications
  • Rapid prototyping
  • High speed digital component test
  • 5G wireless test applications

SMA

 Impedance (Ω)  50
 Frequency GHz  18 GHz (select models to 26.5 GHz)
 Shielding Effectiveness  ≥ -90 dB
 Dielectric withstanding Voltage  1000 VRMS
 Mating Cycles  500
 Mating Torque  7 - 10 in - lbs
 Inter-mate ability  2.92mm
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.



SMP

 Impedance (Ω)  50
 Frequency GHz  40 GHz
 Shielding Effectiveness  ≥ -80 dB DC - 3 GHz
 ≥ -65 dB 3 - 26.5 GHz
 Dielectric withstanding Voltage  500 VRMS
 Mating Cycles - SB   1000
 Mating Cycles - LD  500
 Mating Cycles - FD   100
 Insertion Force - SB  3.0 lbs
 Insertion Force - LD  5.0 lbs
 Insertion Force - FD   7.0 lbs
 Withdrawal Force - SB  0.5 lbs
 Withdrawal Force - LD  7.0 lbs
 Withdrawal Force - FD   9.0 lbs
 Axial Misalignment  .010” Max
 Radial Misalignment  3° Max
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.
Filters
7029-3823
SMA Cable Assemblies 7029-3823
Datasheet
7029-3825
SMA Cable Assemblies 7029-3825
Datasheet
7029-3824
SMA Cable Assemblies 7029-3824
Datasheet
7029-3826
SMA Cable Assemblies 7029-3826
Datasheet
7012-1979
SMP Cable Assemblies 7012-1979
Datasheet
7012-1981
SMP Cable Assemblies 7012-1981
Datasheet
7012-1980
SMP Cable Assemblies 7012-1980
Datasheet
7012-1982
SMP Cable Assemblies 7012-1982
Datasheet
