The Significance of RF Connectors, Adapters, and Cable Assemblies in Test and Instrumentation

November 15, 2023

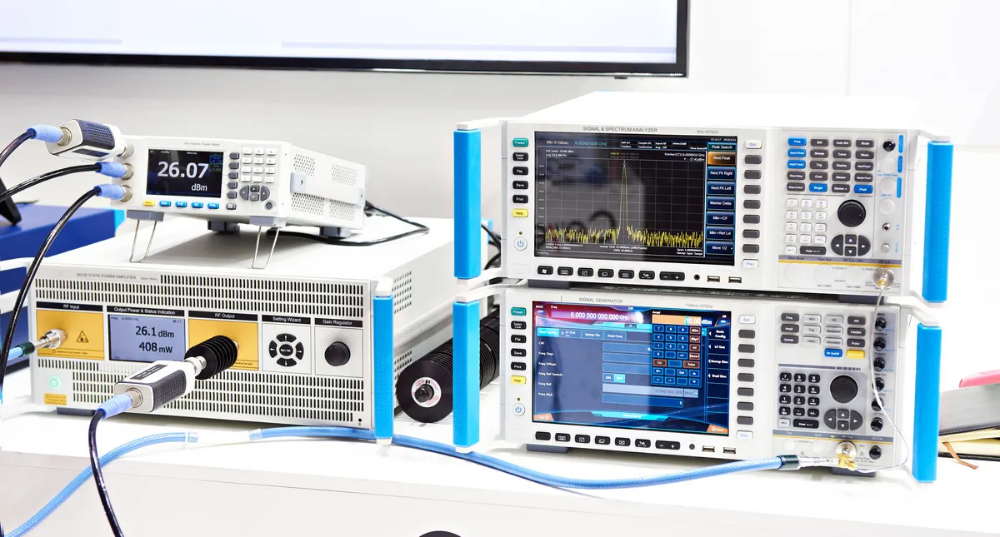

test instrumentation


In the world of Test and Instrumentation, precision and reliability are non-negotiable. RF connectors, adapters, and cable assemblies play a pivotal role in ensuring that measurements are accurate and dependable. Let's dive into the crucial characteristics that make these passive components indispensable in this demanding market.


1. Repeatability and Precision

Test and Instrumentation require measurements that are not only accurate but also repeatable. SV Microwave’s RF connectors, adapters, and cable assemblies maintain consistent electrical characteristics, enabling reliable and precise results. Impedance matching and signal integrity are key, reducing signal loss and ensuring measurements can be trusted.


2. High Mating Cycles

Test setups often involve frequent connections and disconnections of RF components. Here, the importance of components designed for extended mating cycles becomes evident. These robust connectors and adapters reduce maintenance costs and minimize downtime, ensuring long-term reliability in test systems.


3. Durability and Reliability

Even in a controlled environment like a test lab, RF connectors, adapters, and cable assemblies must be rugged and built to last. Their durability is critical to maintaining the integrity of the test setup, avoiding costly replacements and disruptions.

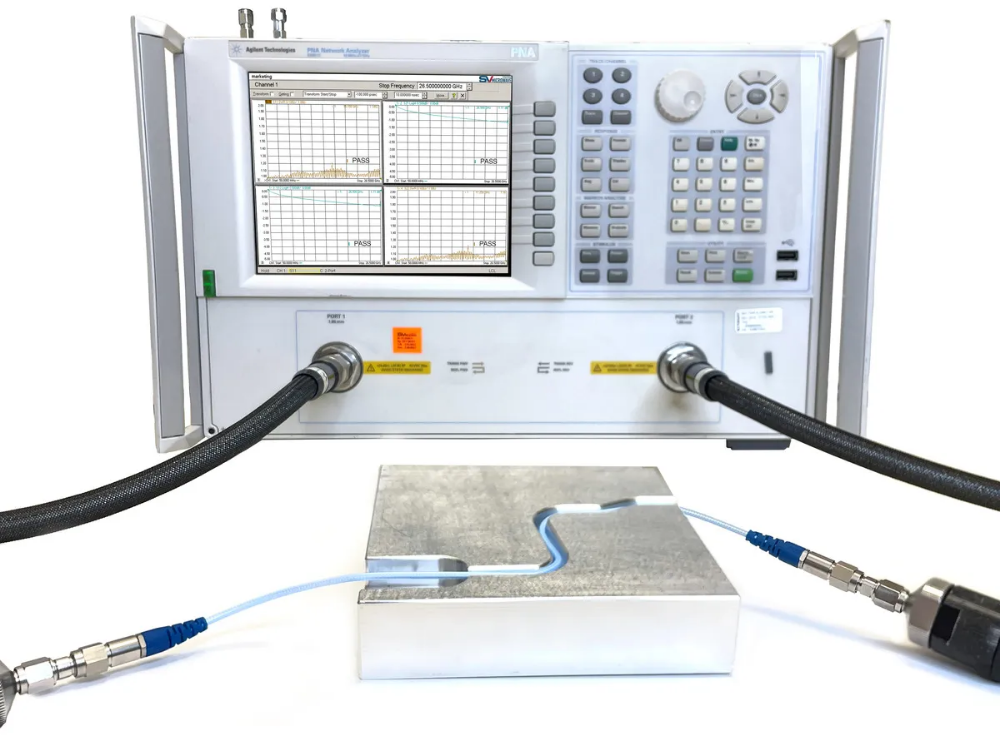

significance of RF connectors in test and instrumentation

4. Low Insertion Loss

In Test and Instrumentation, minimal insertion loss is vital to maintaining system integrity. RF connectors and cable assemblies with low insertion loss help preserve signal strength, thus improving measurement quality.


5. Wide Frequency Range

The ability to handle various frequency bands without compromising signal integrity is paramount. SV Microwave offers products for a wide breadth of proprietary and industry-standard interfaces, covering your needs through over 100 GHz.


6. Signal Integrity

Maintaining signal integrity and preventing electromagnetic interference (EMI) is a top priority. High-quality RF connectors and cable assemblies are designed to minimize signal distortion, ensuring that the collected data accurately represents the device under test.

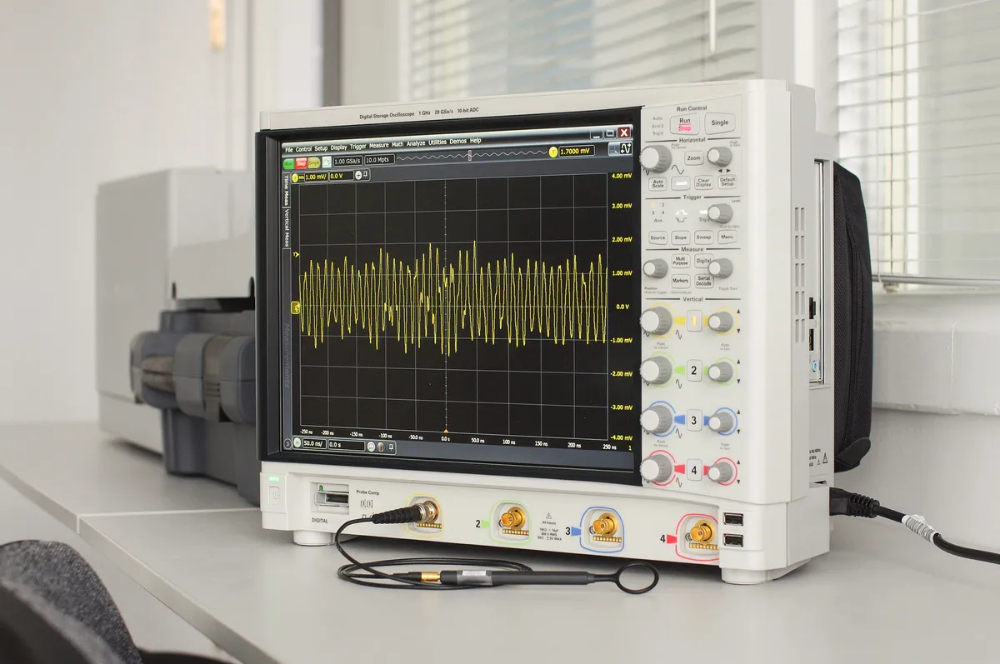

cable assemblies in test and instrumentation

7. Cost-Effectiveness

While quality is a must, cost-effectiveness is also a consideration. RF components that provide a long service life, high performance, and low maintenance costs are highly valued in the Test and Instrumentation market.



In conclusion, RF connectors, adapters, and cable assemblies are integral components for the Test and Instrumentation market. Their ability to provide repeatability, handle numerous mating cycles, offer durability, minimize insertion loss, support a wide frequency range, maintain signal integrity, enable precision calibration, and remain cost-effective is what makes them indispensable. In this demanding industry, precision and accuracy are paramount, and RF connectors and related components play a pivotal role in advancing technology and maintaining industry standards.
