SuperFlex Ø.047 RF Cable Assemblies

Picture for category SuperFlex Ø.047 RF Cable Assemblies

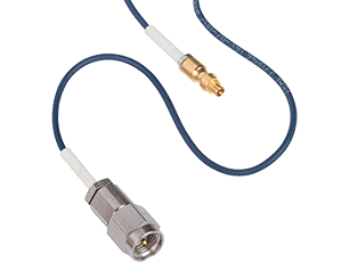

SV Microwave now offers fixed length RF cable assemblies using its most flexible Ø.047" cable yet! This super flexible coax cable is capable of extreme bends which allow it to fit in tight spaces and route for any application. Cable assembly configurations are currently available using SMA and/or SMPM connector series at 6” and 12” lengths. Custom variations are available as well. Avoid issues caused by space constraints with our new SuperFlex cable assemblies!

Features / Benefits:

  • Fixed Length Cable Assemblies using SMA and SMPM series
  • Extreme bends allow cables to fit in the smallest of spaces
  • Inside Bend Radius of .0625”
  • Low solder wicking for high flexibility behind the cable ferrule
  • High flex-life ensures excellent performance after repeated usage
  • Helically wrapped outer conductor ensures excellent RF shielding
  • Low flex resistance transfers less force to blindmate interfaces and solder joints

Applications:

  • Aerospace
  • Broadband
  • Embedded Systems
  • Telecommunications
  • Military
  • Test and Instrumentation

SMA

 Impedance (Ω)  50
 Frequency GHz  18 GHz (select models to 26.5 GHz)
 Shielding Effectiveness  ≥ -90 dB
 Dielectric withstanding Voltage  1000 VRMS
 Mating Cycles  500
 Mating Torque  7 - 10 in - lbs
 Inter-mate ability  2.92mm
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.



SMPM

 Impedance (Ω)  50
 Frequency GHz  65 GHz
 Shielding Effectiveness  ≥ -80 dB DC - 3 GHz
 ≥ -65 dB 3 - 26.5 GHz
 Dielectric withstanding Voltage  325 VRMS
 Mating Cycles - SB   500
 Mating Cycles - FD   100
 Insertion Force - SB  2.5 lbs
 Insertion Force - FD   4.5 lbs
 Withdrawal Force - SB  1.5 lbs
 Withdrawal Force - FD   6.5 lbs
 Axial Misalignment  .010” Max
 Radial Misalignment  3° Max
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.

Application Note

SuperFlex .047 RF Cable Assemblies

Product Video

Filters
Part #   7029-3436

SMA Male to SMA Male 12" Cable Assembly for .047 SuperFlex Cable

Available Inventory: 91
7029-3436
SMA Cable Assemblies 7029-3436
Datasheet
Part #   7029-3437

SMA Male to SMA Male 6" Cable Assembly for .047 SuperFlex Cable

Available Inventory: 90
7029-3437
SMA Cable Assemblies 7029-3437
Datasheet
Part #   7032-7777

SMPM Female to SMA Male 12" Cable Assembly for .047 SuperFlex Cable"

Available Inventory: 46
7032-7777
SMPM Cable Assemblies 7032-7777
Datasheet
Part #   7032-7821

SMPM Female to SMA Male 6" Cable Assembly for .047 SuperFlex Cable"

Available Inventory: 35
7032-7821
SMPM Cable Assemblies 7032-7821
Datasheet
7032-7846
SMPM Cable Assemblies 7032-7846
Datasheet
7032-7845
SMPM Cable Assemblies 7032-7845
Datasheet
