SMPM Spring Bullets

Picture for category SMPM Spring Bullets

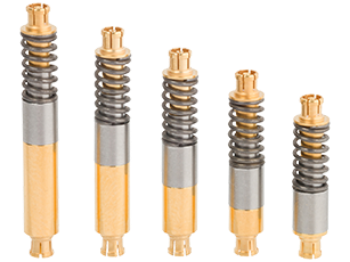

SV Microwave’s SMPM spring bullets guarantee maximum RF performance by eliminating gaps between the bullet and shroud during gang mating. Additionally, these spring loaded bullets have been designed for repeatable VSWR performance under all states of compression by solving radial misalignment issues when fully mated.

Features / Benefits:

  • Eliminates gaps between bullet and shroud for maximum RF performance
  • Wide range of available sizes
  • Performance guaranteed under all states of compression
  • DC - 40 GHz

Applications:

  • Mil-Aerospace
  • High density, small form factor
  • Board to board with multiple simultaneous mates
  • Large scale blind mate arrays

SMPM

 Impedance (Ω)  50
 Frequency GHz  65 GHz
 Shielding Effectiveness  ≥ -80 dB DC - 3 GHz
 ≥ -65 dB 3 - 26.5 GHz
 Dielectric withstanding Voltage  325 VRMS
 Mating Cycles - SB   500
 Mating Cycles - FD   100
 Insertion Force - SB  2.5 lbs
 Insertion Force - FD   4.5 lbs
 Withdrawal Force - SB  1.5 lbs
 Withdrawal Force - FD   6.5 lbs
 Axial Misalignment  .010” Max
 Radial Misalignment  3° Max
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.

Application Note

SMP Spring Bullet Application Note

Product Video

Filters
per page
Part #   1132-4113

SMPM Female to Female Bullet, Spring Loaded (OAL 0.600")

Available Inventory: 50
1132-4113
SMPM Adapters 1132-4113
Datasheet
Part #   1132-4114

SMPM Female to Female Bullet, Spring Loaded (OAL 0.690")

Available Inventory: 50
1132-4114
SMPM Adapters 1132-4114
Datasheet
Part #   1132-4115

SMPM Female to Female Bullet, Spring Loaded (OAL 0.780")

Available Inventory: 15
1132-4115
SMPM Adapters 1132-4115
Datasheet
Part #   1132-4116

SMPM Female to Female Bullet, Spring Loaded (OAL 0.870")

Available Inventory: 50
1132-4116
SMPM Adapters 1132-4116
Datasheet
Part #   1132-4117

SMPM Female to Female Bullet, Spring Loaded (OAL 0.960")

Available Inventory: 49
1132-4117
SMPM Adapters 1132-4117
Datasheet
