Secure Locking SMP/SMPM Connectors

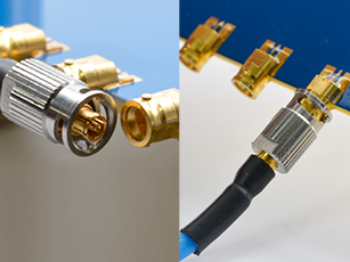

SV Microwave's QuarterBack® product line utilizes a quarter turn bayonet style coupling nut with a locking feature for standard SMP / SMPM interfaces. The QuarterBack® products are ideal for high vibration and test applications that require a large number of mating cycles.

Features / Benefits & Applications
Technical Specs
Additional Resources

Features / Benefits:

Quarter turn bayonet locking feature on standard SMP/SMPM interface
Low VSWR through 40 GHz(SMP)/65 GHz(SMPM)
Female cable connector options available for all flexible cable types .086” diameter and smaller
All standard SMP/SMPM male connector options available upon request
Low insertion/extraction forces, compared to standard full detent SMP and SMPM, mean less torque on board mount connector solder joints during mating and demating
Spring loaded positive mating feature allows excellent electrical performance even in extreme vibration environments
Low mating forces allow for more mating cycles without failure compared to full detent SMP and SMPM

Applications

Bench-top testing (PCB mount, cable connectors and adapters)
High vibration environments
Applications requiring a high number of mating cycles
Military and Commercial options available

2.92 mm

Impedance (Ω)	50
Frequency GHz	40 GHz
Shielding Effectiveness	≥ -100 dB
Dielectric withstanding Voltage	750 VRMS
Mating Cycles	500
Mating Torque	7 - 10 in - lbs
Inter-mate ability	SMA
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

SMA

Impedance (Ω)	50
Frequency GHz	18 GHz (select models to 26.5 GHz)
Shielding Effectiveness	≥ -90 dB
Dielectric withstanding Voltage	1000 VRMS
Mating Cycles	500
Mating Torque	7 - 10 in - lbs
Inter-mate ability	2.92mm
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

SMP

Impedance (Ω)	50
Frequency GHz	40 GHz
Shielding Effectiveness	≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	500 VRMS
Mating Cycles - SB	1000
Mating Cycles - LD	500
Mating Cycles - FD	100
Insertion Force - SB	3.0 lbs
Insertion Force - LD	5.0 lbs
Insertion Force - FD	7.0 lbs
Withdrawal Force - SB	0.5 lbs
Withdrawal Force - LD	7.0 lbs
Withdrawal Force - FD	9.0 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

SMPM

Impedance (Ω)	50
Frequency GHz	65 GHz
Shielding Effectiveness	≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	325 VRMS
Mating Cycles - SB	500
Mating Cycles - FD	100
Insertion Force - SB	2.5 lbs
Insertion Force - FD	4.5 lbs
Withdrawal Force - SB	1.5 lbs
Withdrawal Force - FD	6.5 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
