Mini-D RF vs Humboldt
Advantages of the MDRF RF Connectors and Cable Assemblies
Dear readers, I am James Merryman and I'm a product development engineer at SV Microwave. Today, I would like to discuss a couple of our RF multiport gang mate solutions that are currently available. The first of which is our Mini-D RF, or MDRF. This product line has existed at SV, in one form or another, for many years. Although the MDRF has seen many evolutions and facelifts, at its core it has always been a product designed to allow the simultaneous mating of 8 coaxial cable assemblies with an industry-leading density - .110” center-to-center pitch. The Humboldt is a new product for SV and is aimed at providing a similar solution, but with the added flexibility of rapid manufacturing techniques and on-the-fly customization as seen in our online Rapid Response cable builder.
MDRF and Humboldt
Both MDRF and Humboldt utilize SMPS cable connectors, which have proven their reliability across industries, Ø.047 flexible cable capable of satisfying your frequency and tight routing needs, as well as thumb screws for easy, tool-less mating and de-mating. This, though, is where the similarities end. The MDRF boasts an all-metal construction, providing exceptional durability and robustness. This makes it suitable for demanding environments, including military applications, where reliability is crucial. A recent evolution of the MDRF housing is sealed against water and dust ingress, ensuring that your connections remain protected even in harsh conditions. Originating as a request from our customers with tactical field operations, this feature has been rolled into our standard offerings and is vital in military and outdoor applications. The MDRF has been used on military programs of record and has earned its reputation for trustworthiness and an ability to meet stringent requirements.

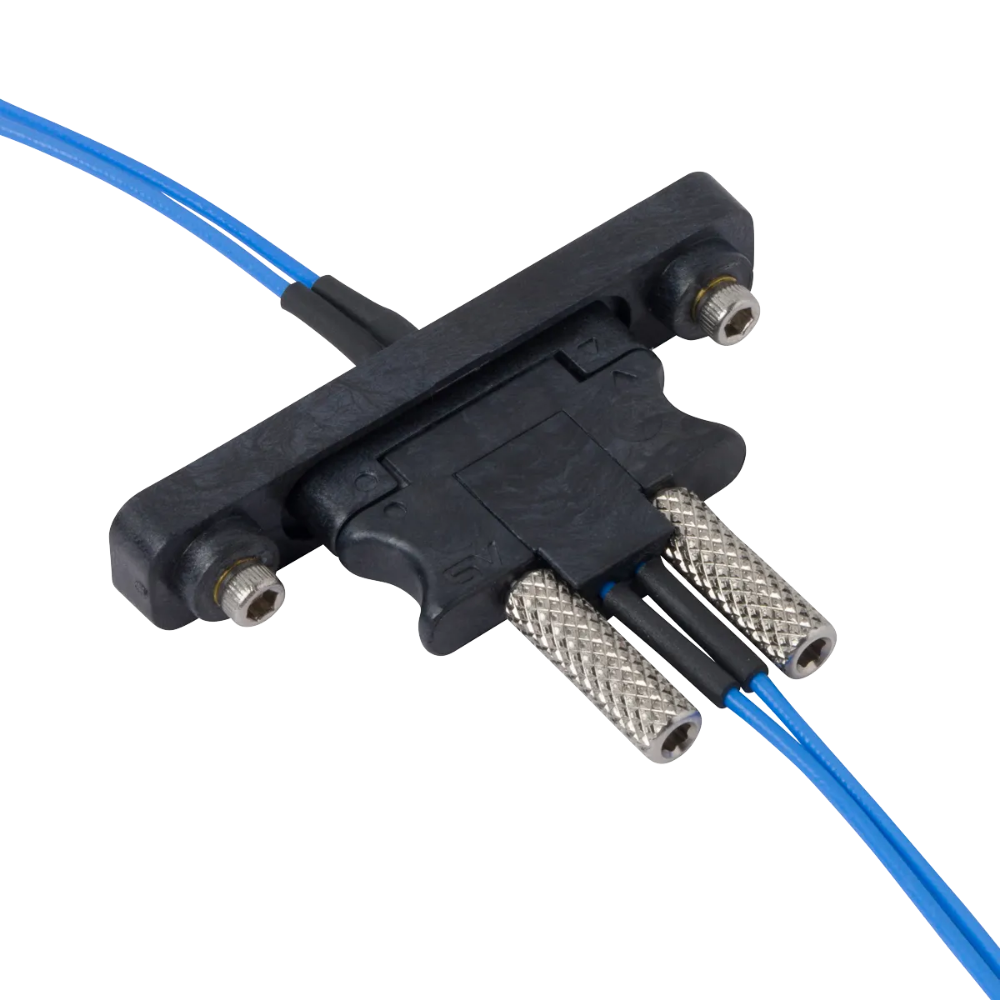

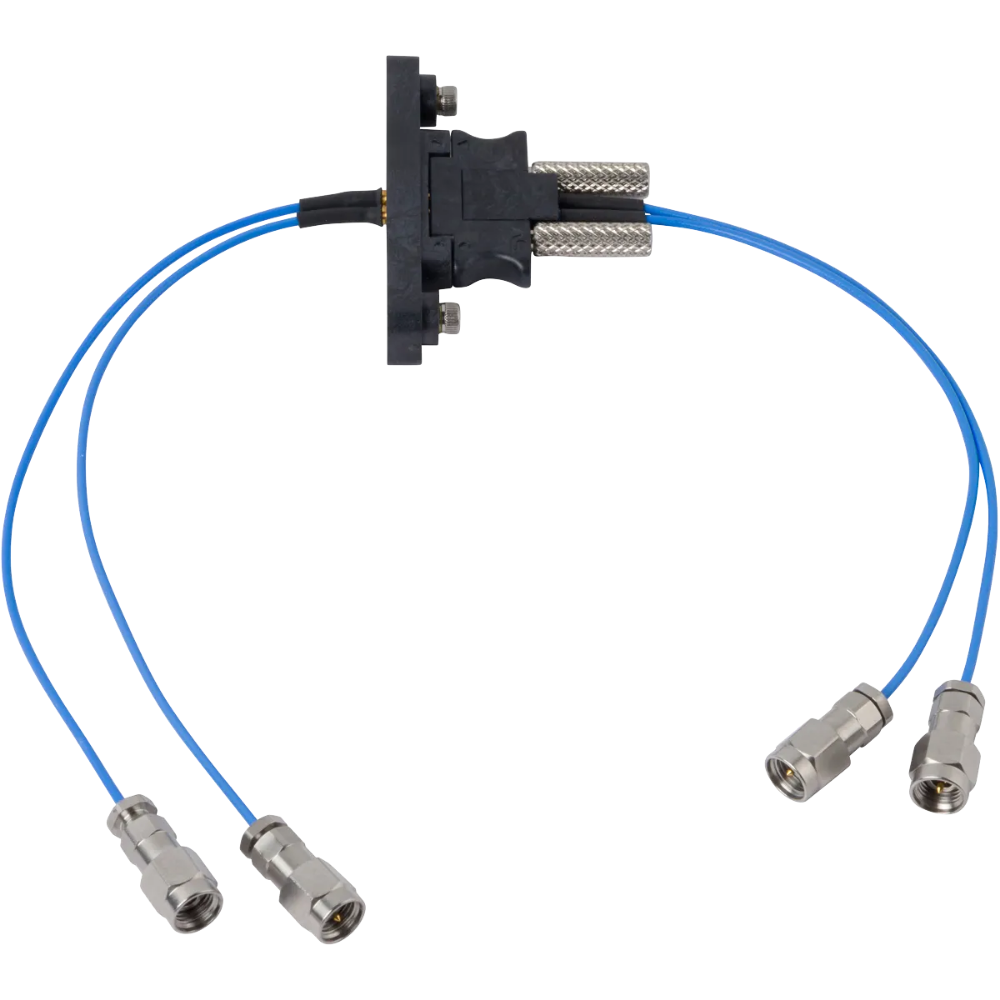

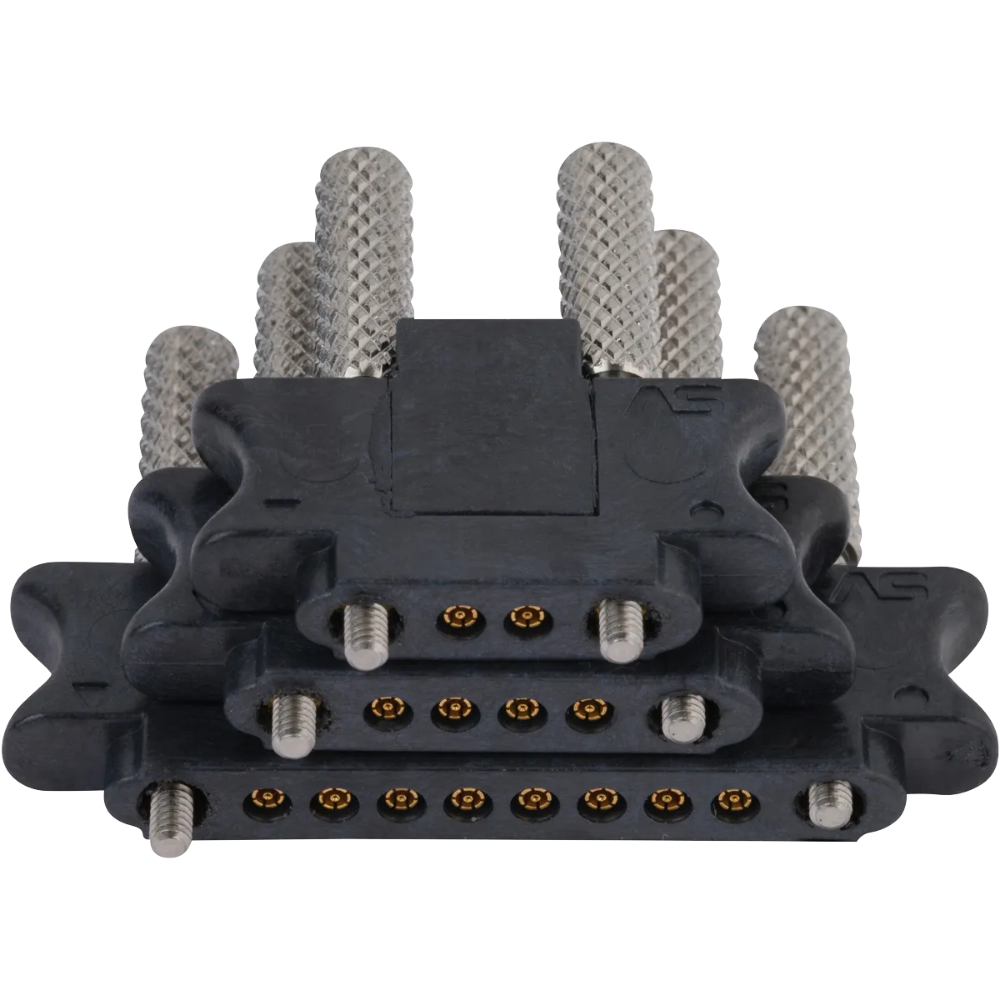

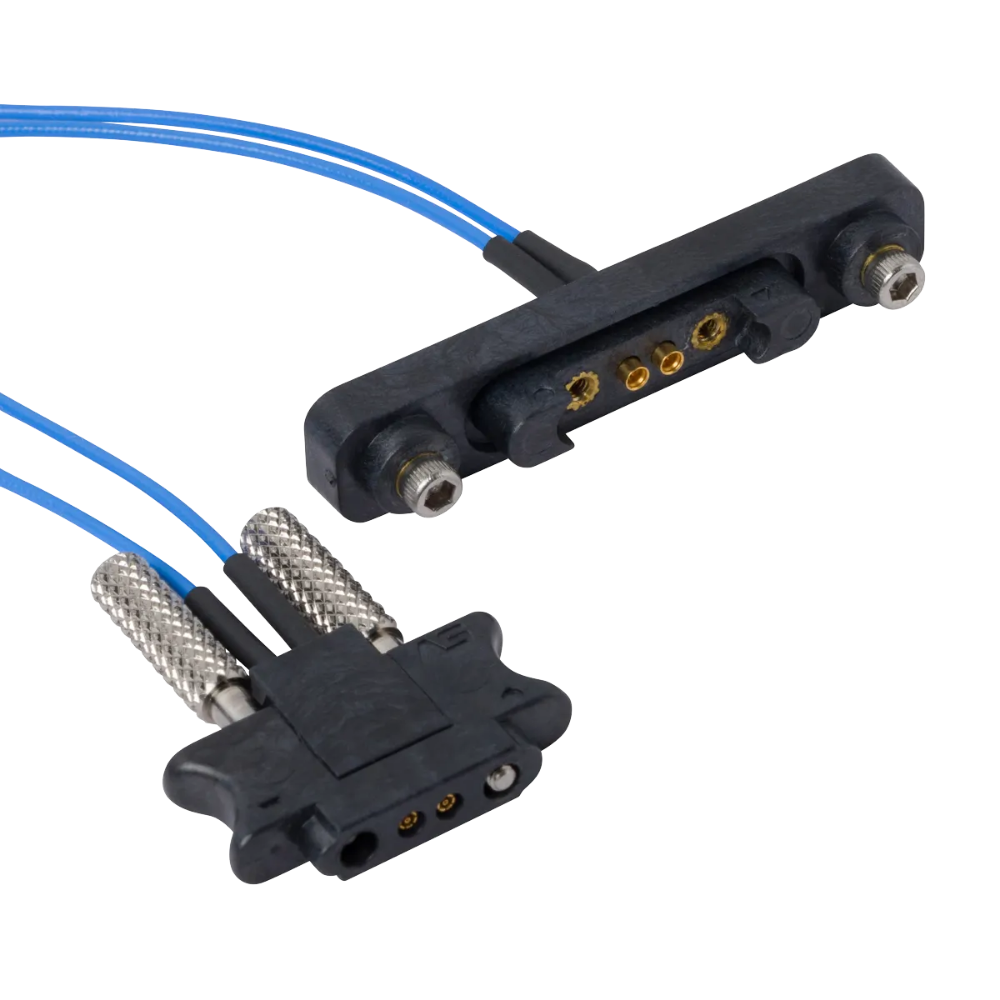

Humboldt, on the other hand, stands out with its lightweight plastic construction. Though plastic, the housing is a carbon-fiber-reinforced polymer and is strong enough for the most demanding applications and heat-resistant enough to survive most lead-free solder reflow profiles – up to 255◦ C. Humboldt offers flexibility with the option of 2, 4, or 8 ports, with the possibility of more upon request. This adaptability allows you to customize your solution to meet specific project needs.

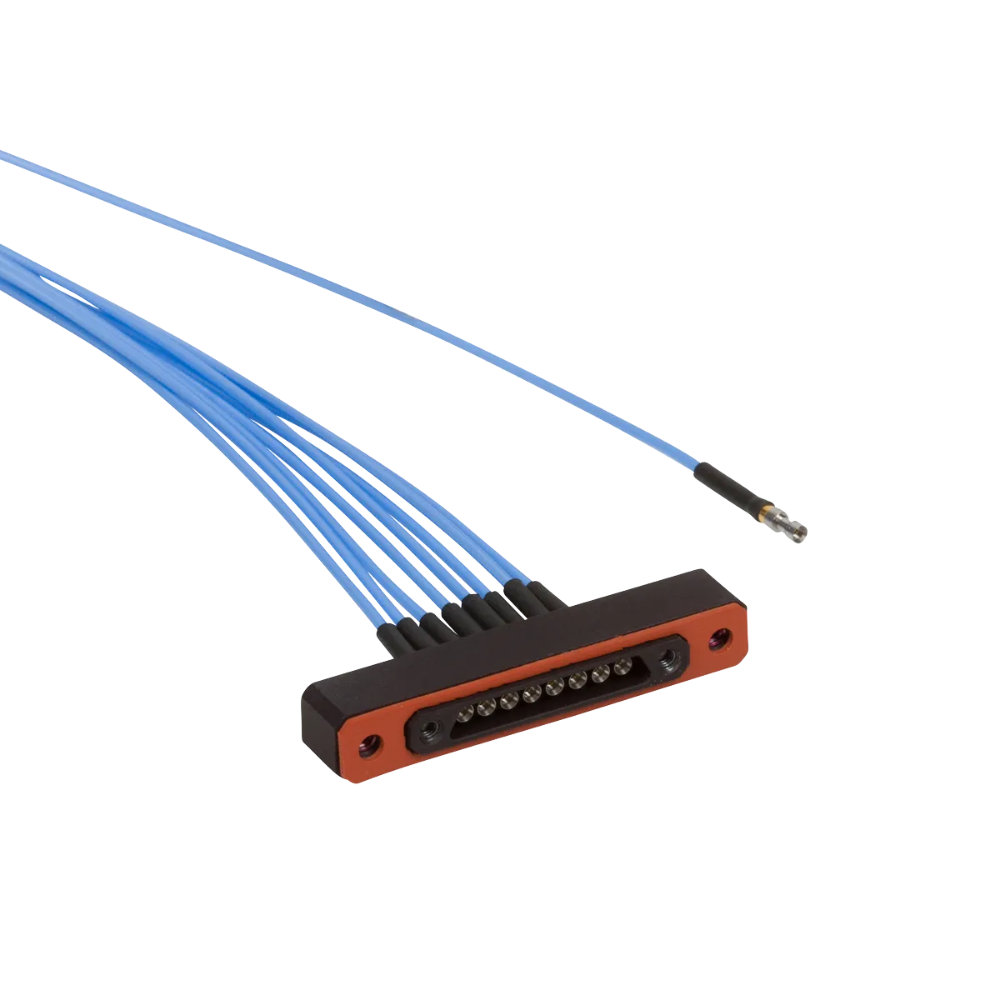

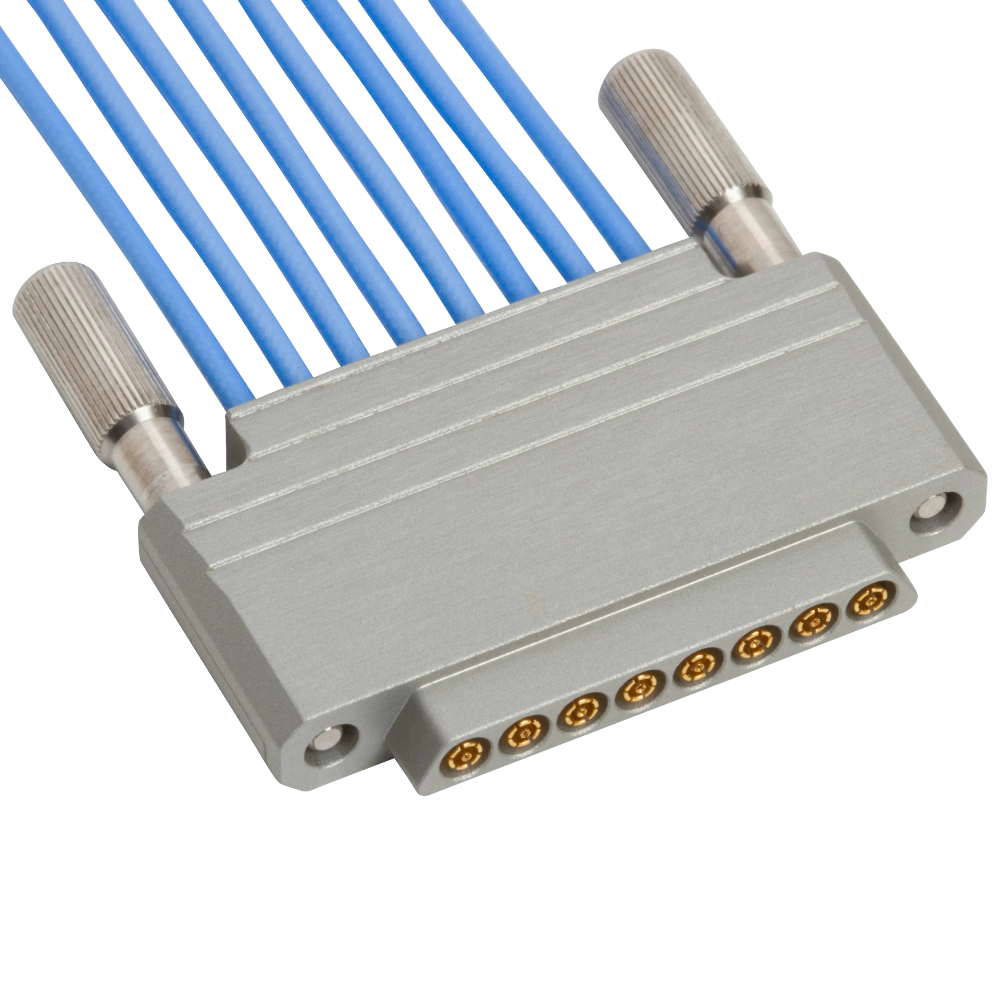

MDRF Design View
 | |
 |  |
Further, Humboldt simplifies the customization process with its intuitive online cable assembly builder. This user-friendly tool allows you to configure your cable assemblies with ease, reducing the complexity of ordering. With a rapid 15-day lead time, the Humboldt product line excels in situations where quick turnaround is vital. This speed can be a significant advantage in fast-paced industries.

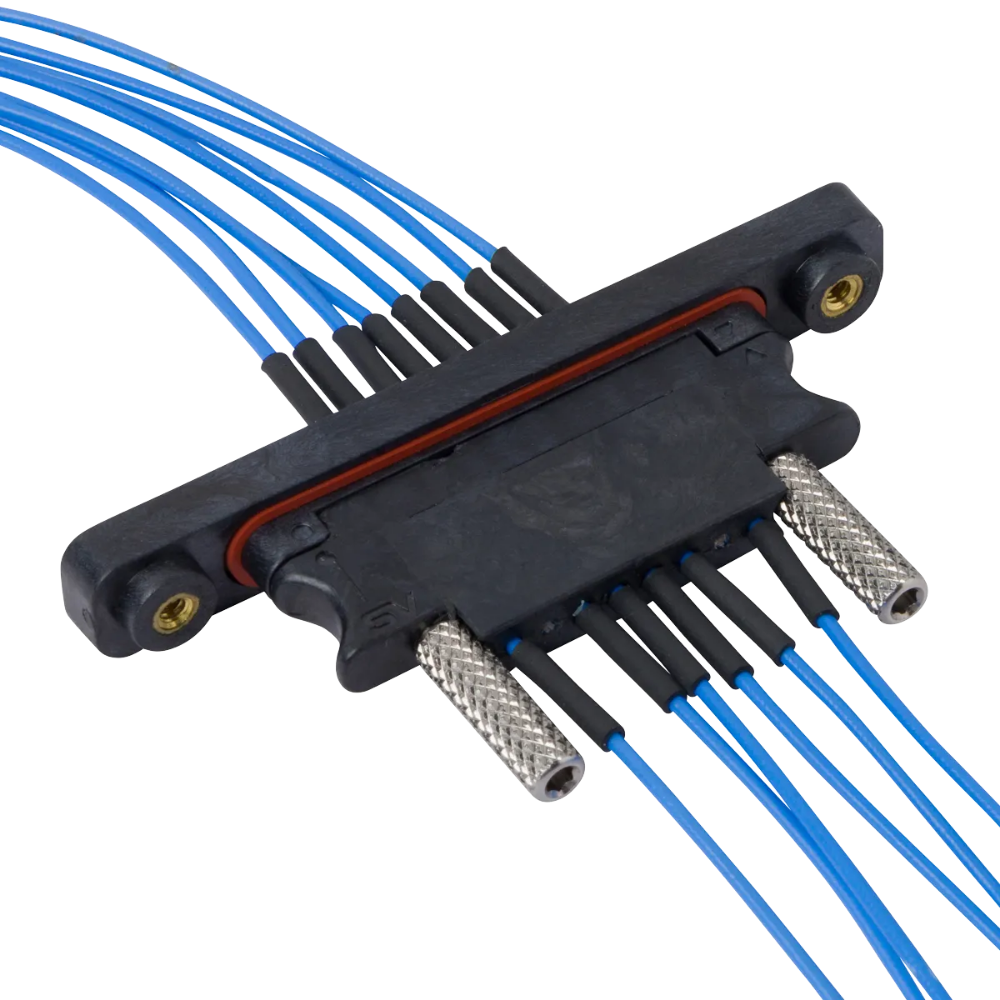

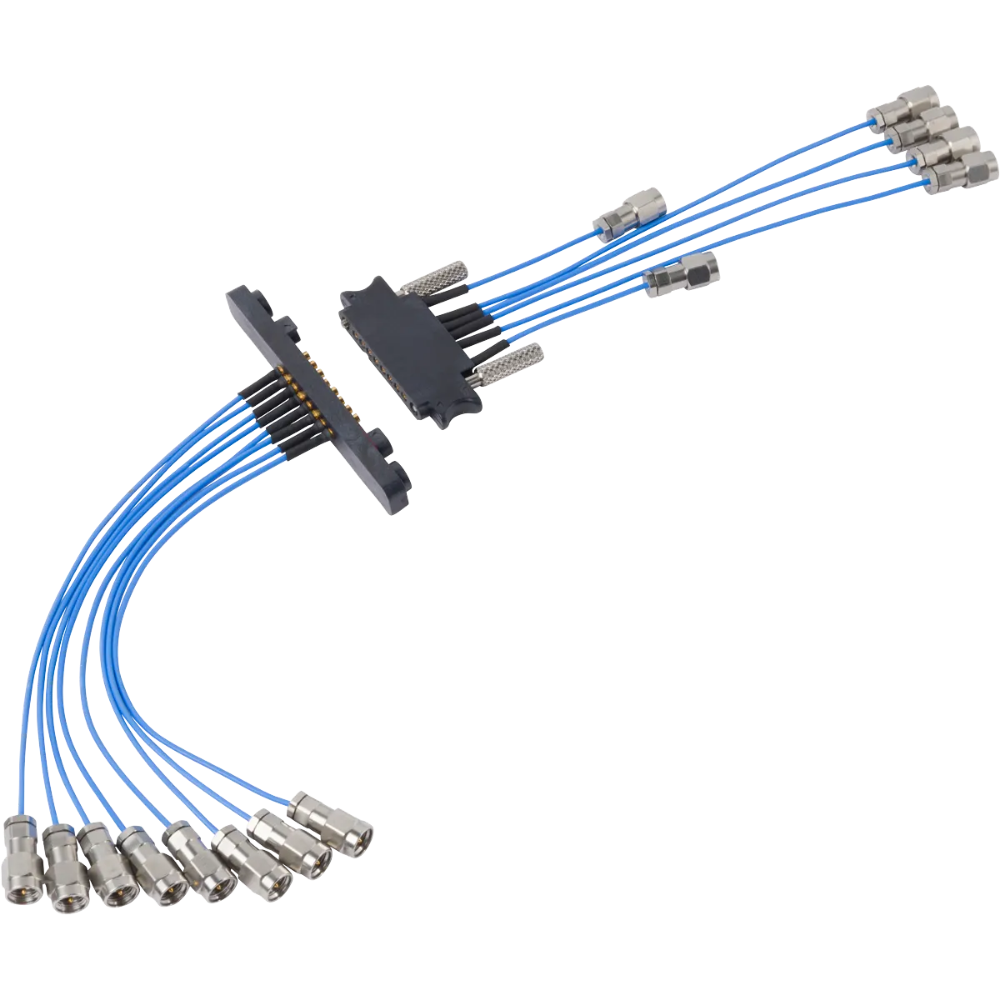

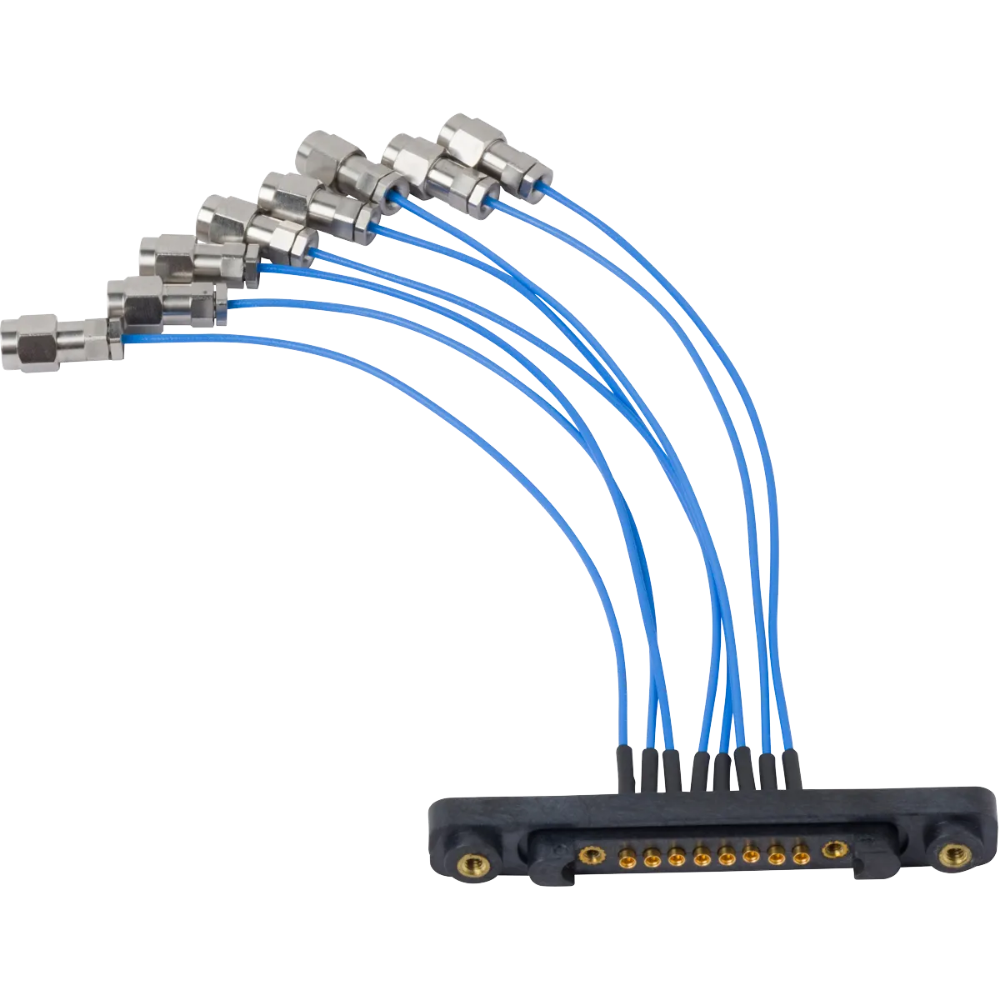

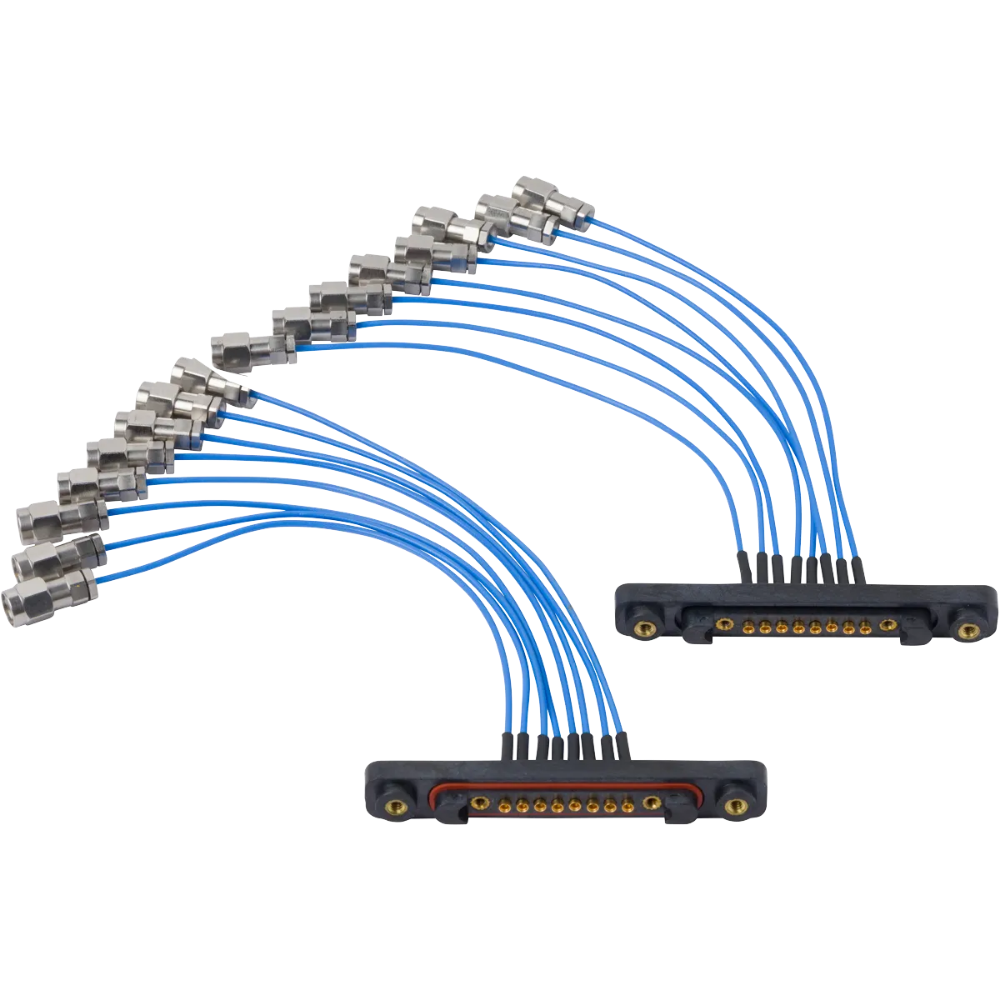

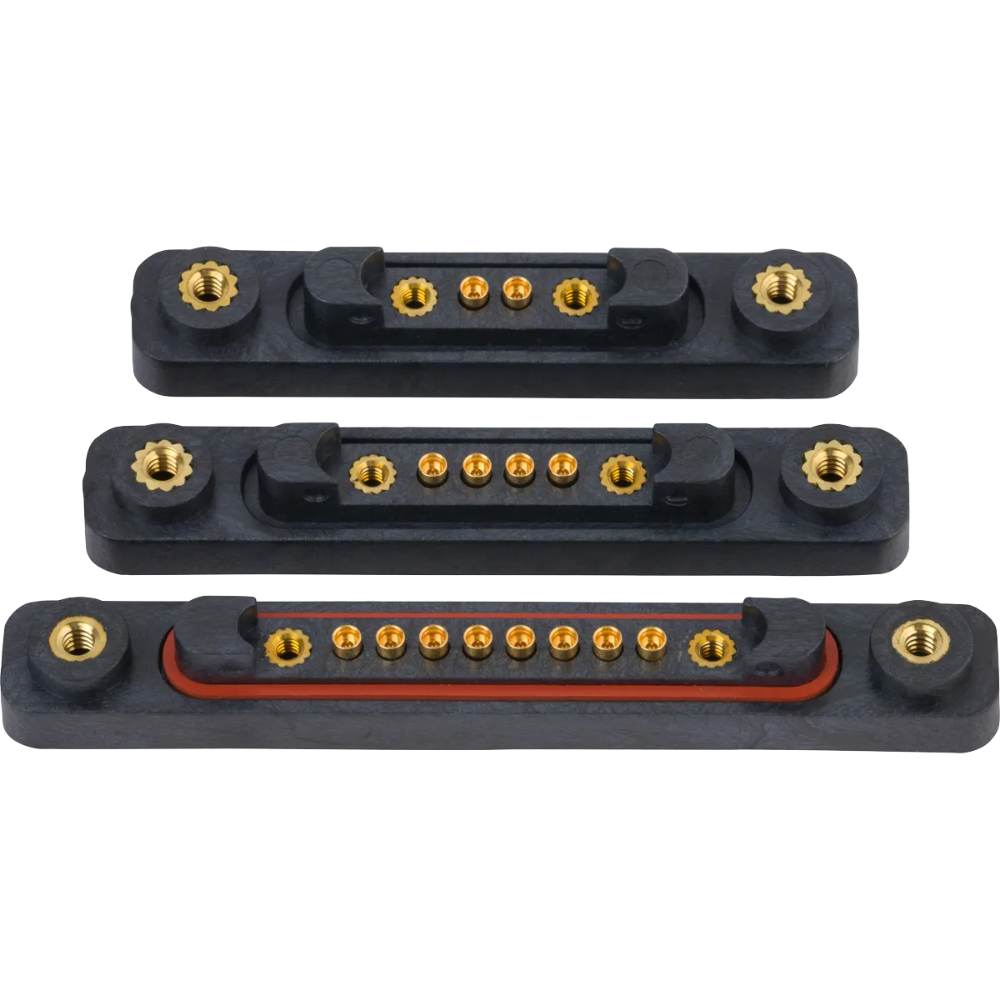

Humboldt Design View
 |  |
 |  |
 |  |
 |  |
Conclusion
Lastly, the MDRF and Humboldt RF connectors and cable assemblies offer distinct advantages, catering to different industry needs. The MDRF excels in ruggedness, fixed port configurations, and a proven track record in military applications. On the other hand, the Humboldt line offers versatility, rapid availability, customizable port options, and a user-friendly online builder. Your choice between the two will depend on the specific requirements of your project and your priorities, whether it's durability, flexibility, or speed of delivery.
