75 Ω D38999 Circular RF Cable Assemblies

Picture for category 75 Ω D38999 Circular RF Cable Assemblies

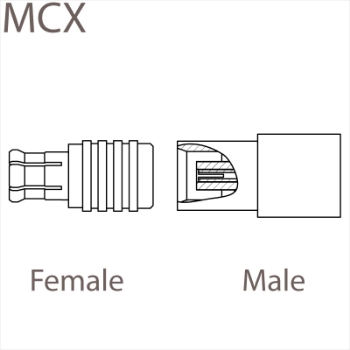

SV Microwave just released fixed-length 75 Ohm RF MCX Cable Assemblies for series SMPM, SMPS and BMZ. These cable assemblies have been designed to fit into any D38999 housing, and have a true 75 Ohm impedance construction that assures a high fidelity signal in 3G SDI, 4K and 8K video feeds.'

Features / Benefits:

  • Interfaces modified for true 75 Ω impedance through both cable and connector
  • Fits into common D38999 housings
  • Contacts available for standard cavity sizes 8, 12, and 16

Applications:

  • 3G-SDI - high speed video applications that require superior shielding
  • Ruggedized I/O video connections for military applications
  • High definition camera links for UAV platforms

BMZ

 Impedance (Ω)  50
 Frequency GHz  18 GHz
 Shielding Effectiveness  ≥ -80 dB
 Dielectric withstanding Voltage  1000 VRMS
 Mating Cycles  500
 Insertion Force  0.75 lbs
 Withdrawal Force  0.13 lbs
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.



SMPS

 Impedance (Ω)  50
 Frequency GHz  65 GHz
 Shielding Effectiveness  ≥ -80 dB DC - 3 GHz
 ≥ -65 dB 3 - 26.5 GHz
 Dielectric withstanding Voltage  250 VRMS
 Mating Cycles - SB   500
 Mating Cycles - FD   100
 Insertion Force - SB  1.2 lbs
 Insertion Force - FD   2.5 lbs
 Withdrawal Force - SB  1.0 lbs
 Withdrawal Force - FD   4.5 lbs
 Axial Misalignment  .010” Max
 Radial Misalignment  3° Max
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.



SMPM

 Impedance (Ω)  50
 Frequency GHz  65 GHz
 Shielding Effectiveness  ≥ -80 dB DC - 3 GHz
 ≥ -65 dB 3 - 26.5 GHz
 Dielectric withstanding Voltage  325 VRMS
 Mating Cycles - SB   500
 Mating Cycles - FD   100
 Insertion Force - SB  2.5 lbs
 Insertion Force - FD   4.5 lbs
 Withdrawal Force - SB  1.5 lbs
 Withdrawal Force - FD   6.5 lbs
 Axial Misalignment  .010” Max
 Radial Misalignment  3° Max
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.

Application Note

75 Ohm D38999 Circular RF Cable Assemblies Application Note

Filters
7093-0280
BMZ Cable Assemblies 7093-0280
Datasheet
7093-0279
BMZ Cable Assemblies 7093-0279
Datasheet
7093-0278
SMPM Cable Assemblies 7093-0278
Datasheet
7093-0277
SMPM Cable Assemblies 7093-0277
Datasheet
7093-0276
SMPS Cable Assemblies 7093-0276
Datasheet
7093-0275
SMPS Cable Assemblies 7093-0275
Datasheet
